Door handle front/lock/key for BMW 3 Series E21 320 (1979)

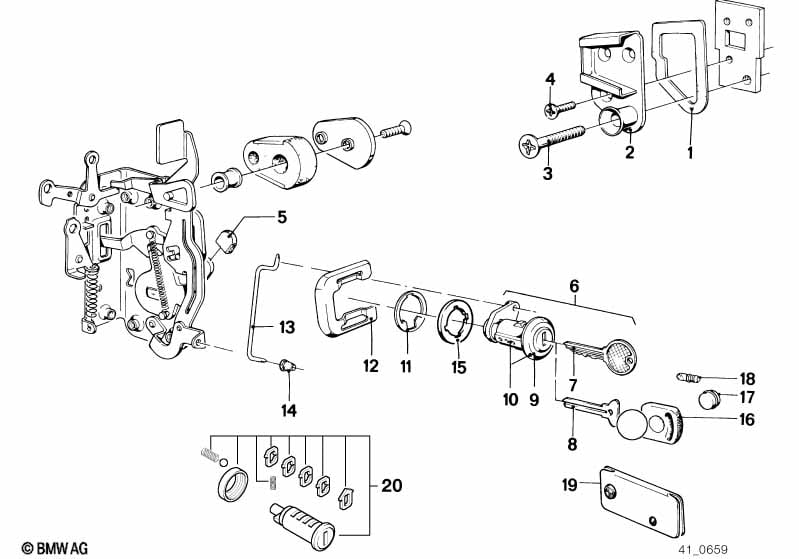

This Door handle front/lock/key technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spacer | X | 51211806023 | $1.17 | ENDED | Shop at ECS Tuning | ||||
| 02 | Latch Striker, left | 1 | 51211852263 | $37.49 | Shop at ECS Tuning | |||||
| 02 | Latch Striker, right | 1 | 51211852264 | $37.49 | Shop at ECS Tuning | |||||
| 03 | Countersunk head screw | M8X35 | 2 | 07119928180 | $1.63 | Shop at ECS Tuning | ||||
| 04 | Countersunk head screw | M6X16-8.8-ZNS3 | 6 | 07119904304 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Bump stop | 2 | 51211809735 | $1.36 | Shop at ECS Tuning | |||||
| 06 | Catch with key left | *CODE 2988 | 1 | 51211845507 | $54.20 | ENDED | Shop at ECS Tuning | |||
| 06 | Catch with key right | *CODE 2988 | 1 | 51211845508 | $54.20 | ENDED | Shop at ECS Tuning | |||
| 07 | Standard key (code) | SERVICE | 1 | 32321109800 | $37.40 | Shop at ECS Tuning | ||||
| 07 | Standard key (blank) | SERVICE | 1 | 32321109801 | $24.93 | Shop at ECS Tuning | ||||
| 07 | General key (blank) | *CODE 1000 | 2 | 32321109803 | $7.71 | ENDED | Shop at ECS Tuning | |||
| 07 | General key (code) | CODE* 10001 | 2 | 51211900875 | $45.95 | Shop at ECS Tuning | ||||
| 07 | General key (blank) | CODE* 10001 | 2 | 51211900892 | $30.64 | Shop at ECS Tuning | ||||
| 09 | Trim ring | 2 | 51211865246 | $1.10 | Shop at ECS Tuning | |||||
| 10 | Lock with code, left | *CODE 5000 | 1 | 51211848861 | $81.75 | Shop at ECS Tuning | ||||
| 10 | Catch with key code right | *CODE 5000 | 1 | 51211848862 | Shop at ECS Tuning | |||||
| 11 | Base | 2 | 51211848827 | $4.32 | Shop at ECS Tuning | |||||
| 12 | Clamp | 2 | 51211838035 | $1.11 | Shop at ECS Tuning | |||||
| 13 | Connection rod | 2 | 51211836432 | $1.51 | ENDED | Shop at ECS Tuning | ||||
| 14 | Circlip | 2 | 51221817032 | $0.31 | Shop at ECS Tuning | |||||
| 15 | Washer | 2 | 51211851246 | $0.55 | Shop at ECS Tuning | |||||
| 16 | Key head illuminated | X | 32329056354 | $13.75 | ENDED | Shop at ECS Tuning | ||||
| The battery is to be installed directly in the corresponding control unit/key on site. It is not permitted to sell the battery if it is not installed. Old batteries must be properly disposed of. |
||||||||||
| 17 | Battery | 1,5 V - PX625A | X | 32321151013 | $8.03 | Shop at ECS Tuning | ||||
| 18 | Bulb | 0,15W | X | 32321151012 | $2.35 | Shop at ECS Tuning | ||||
| 19 | Key case | 1 | 51218213607 | $9.15 | Shop at ECS Tuning | |||||
| 20 | Rep.kit f lock cylinder | *CODE 5000 | 2 | 51219556311 | $31.02 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
