Front door control/door lock for BMW 5 Series E12 525 (1981)

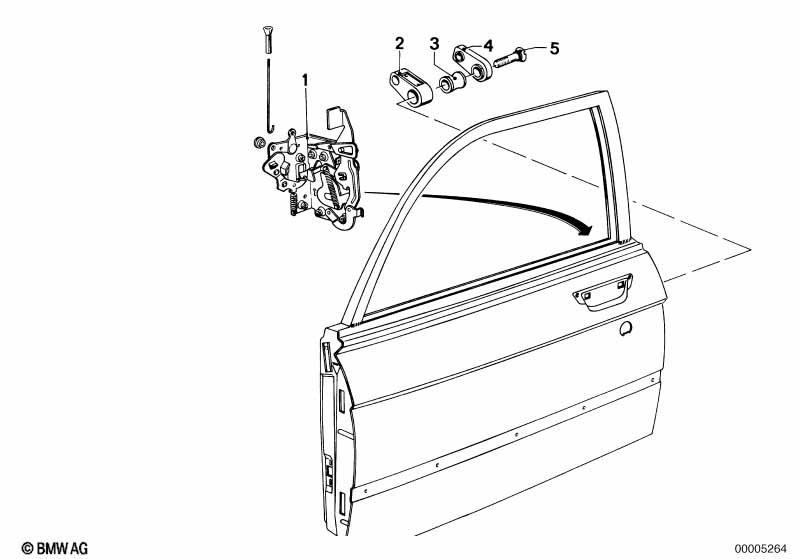

This Front door control/door lock technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Catch front left | 1 | 08/1976 | 51211826299 | $103.64 | Shop at ECS Tuning | ||||
| 01 | Catch front right | 1 | 08/1976 | 51211826300 | $103.64 | Shop at ECS Tuning | ||||
| 02 | Bump stop | 2 | 51211823487 | $6.36 | Shop at ECS Tuning | |||||
| 03 | Bush | 2 | 51211823488 | $1.38 | Shop at ECS Tuning | |||||
| 04 | Plate | 2 | 51211874709 | $11.68 | ENDED | Shop at ECS Tuning | ||||
| 05 | Countersunk head screw | M6X16-8.8-ZNS3 | 4 | 07119904304 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Countersunk head screw | M6X12 | 6 | 07119928511 | $0.07 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
