Door handle front/lock/key for BMW 5 Series E12 528i (1981)

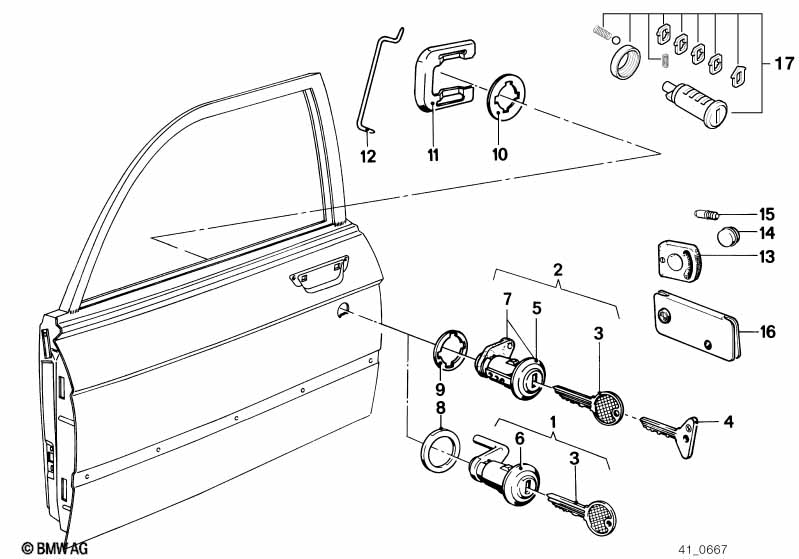

This Door handle front/lock/key technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Catch with key left | 1 | 08/1976 | 51211836433 | $65.47 | Shop at ECS Tuning | ||||
| 02 | Catch with key right | 1 | 08/1976 | 51211836434 | $65.47 | Shop at ECS Tuning | ||||
| 03 | Standard key (code) | SERVICE | 1 | 32321109800 | $37.40 | Shop at ECS Tuning | ||||
| 03 | Standard key (blank) | SERVICE | 1 | 32321109801 | $24.93 | Shop at ECS Tuning | ||||
| 03 | General key (blank) | *CODE 1000 | 2 | 32321109803 | $7.71 | ENDED | Shop at ECS Tuning | |||
| 03 | General key (code) | CODE* 10001 | 2 | 51211900875 | $45.95 | Shop at ECS Tuning | ||||
| 03 | General key (blank) | CODE* 10001 | 2 | 51211900892 | $30.64 | Shop at ECS Tuning | ||||
| 04 | General key (code) | CODE* 10001 | 1 | 51211900877 | $45.95 | ENDED | Shop at ECS Tuning | |||
| 04 | General key (blank) | CODE* 10001 | 1 | 51211900893 | $30.64 | ENDED | Shop at ECS Tuning | |||
| 05 | Trim ring | 2 | 51211866542 | $1.14 | ENDED | Shop at ECS Tuning | ||||
| 07 | Lock with code, left | 1 | 08/1976 | 51211848859 | ENDED | Shop at ECS Tuning | ||||
| 07 | Catch with key code right | 1 | 08/1976 | 51211848860 | ENDED | Shop at ECS Tuning | ||||
| 09 | Base | 2 | 08/1976 | 51211848827 | $4.32 | Shop at ECS Tuning | ||||
| 10 | Washer | 2 | 08/1976 | 51211851246 | $0.55 | Shop at ECS Tuning | ||||
| 11 | Clamp | 2 | 08/1976 | 51211838035 | $1.11 | Shop at ECS Tuning | ||||
| 11 | Clamp | 2 | 08/1976 | 51211848744 | $0.95 | Shop at ECS Tuning | ||||
| 12 | Connection rod | 2 | 08/1976 | 51211847396 | $1.76 | Shop at ECS Tuning | ||||
| 13 | Key head illuminated | X | 32329056354 | $13.75 | ENDED | Shop at ECS Tuning | ||||
| The battery is to be installed directly in the corresponding control unit/key on site. It is not permitted to sell the battery if it is not installed. Old batteries must be properly disposed of. |
||||||||||
| 14 | Battery | 1,5 V - PX625A | X | 32321151013 | $8.03 | Shop at ECS Tuning | ||||
| 15 | Bulb | 0,15W | X | 32321151012 | $2.35 | Shop at ECS Tuning | ||||
| 16 | Key case | 1 | 51218213607 | $9.15 | Shop at ECS Tuning | |||||
| 17 | Rep.kit f lock cylinder | *CODE 2900 | 2 | 08/1976 | 51219556319 | $32.61 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528i Door handle front/lock/key?
- This technical diagram illustrates the Door handle front/lock/key within the Bodywork group for the 5 Series E12 528i produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Catch with key left (Part #51211836433).
- Which models use the hardware listed in this Door handle front/lock/key?
- The hardware and components featured in the Door handle front/lock/key are specific to the 5 Series E12 528i produced during 1981. These technical specifications ensure that parts like the Catch with key left (51211836433) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door handle front/lock/key assembly?
- Each item in the Door handle front/lock/key corresponds to the numbered list below the illustration. For the 5 Series E12 528i, you can identify the Catch with key left by locating its position on the schematic, which then links to the official BMW part number 51211836433 for the Bodywork section.
