Front door-striker plate for BMW 5 Series E12 528i (1981)

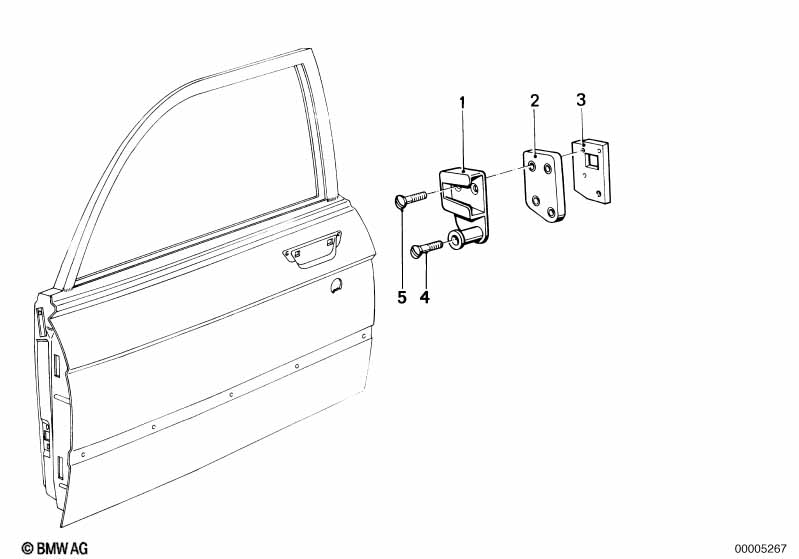

This Front door-striker plate technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Latch Striker, left | 1 | 51211852263 | $37.49 | Shop at ECS Tuning | |||||
| 01 | Latch Striker, right | 1 | 51211852264 | $37.49 | Shop at ECS Tuning | |||||
| 02 | Spacer | 2 | 51211806023 | $1.17 | ENDED | Shop at ECS Tuning | ||||
| 03 | Locker plate left | 1 | 51211851493 | $4.06 | Shop at ECS Tuning | |||||
| 03 | Locker plate right | 1 | 51211851494 | $4.06 | Shop at ECS Tuning | |||||
| 04 | Countersunk head screw | M8X35 | 2 | 07119928180 | $1.63 | Shop at ECS Tuning | ||||
| 05 | Countersunk head screw | M6X16-8.8-ZNS3 | 6 | 07119904304 | $0.25 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528i Front door-striker plate?
- This technical diagram illustrates the Front door-striker plate within the Bodywork group for the 5 Series E12 528i produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Latch Striker, left (Part #51211852263).
- Which models use the hardware listed in this Front door-striker plate?
- The hardware and components featured in the Front door-striker plate are specific to the 5 Series E12 528i produced during 1981. These technical specifications ensure that parts like the Latch Striker, left (51211852263) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front door-striker plate assembly?
- Each item in the Front door-striker plate corresponds to the numbered list below the illustration. For the 5 Series E12 528i, you can identify the Latch Striker, left by locating its position on the schematic, which then links to the official BMW part number 51211852263 for the Bodywork section.
