Locking system, door, front for BMW 5 Series E12 520 (1976)

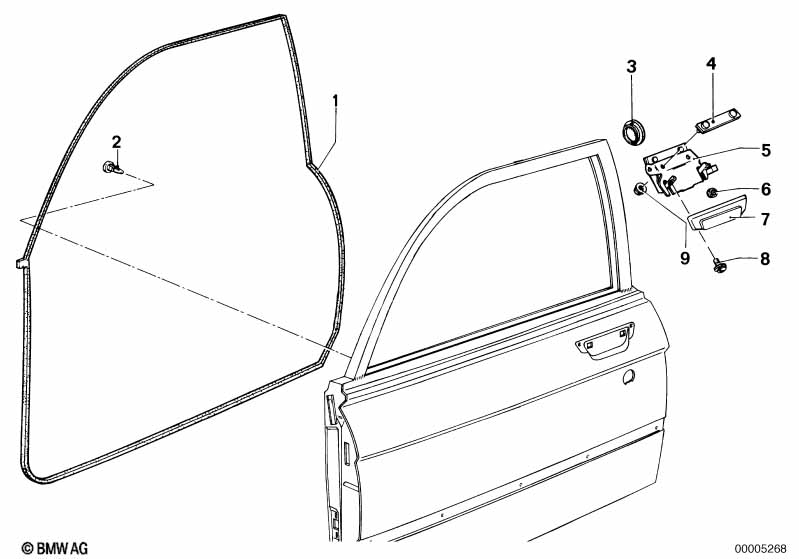

This Locking system, door, front technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door sealing front left | 1 | 51211816707 | $219.03 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door sealing front right | 1 | 51211816708 | $219.03 | Shop at ECS Tuning | |||||
| 03 | Plug | 2 | 51211800363 | $0.55 | ENDED | Shop at ECS Tuning | ||||
| 04 | Lock plate | 2 | 51211832811 | $6.31 | Shop at ECS Tuning | |||||
| 05 | Base door handle left | 1 | 51211808805 | $31.67 | ENDED | Shop at ECS Tuning | ||||
| 05 | Base door handle right | 1 | 51211808806 | $31.67 | ENDED | Shop at ECS Tuning | ||||
| 06 | Distance rubber | D=6MM | 4 | 51216742120 | $1.25 | Shop at ECS Tuning | ||||
| 07 | Handle | 2 | 51211808440 | $72.39 | Shop at ECS Tuning | |||||
| 08 | Fillister head screw | M4X10-Z5 | 4 | 51211916992 | $0.58 | ENDED | Shop at ECS Tuning | |||
| 09 | Self-locking hex nut | M6 | 4 | 07147153450 | $0.47 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
