Door weatherstrip front for BMW 6 Series E24 633CSi (1984)

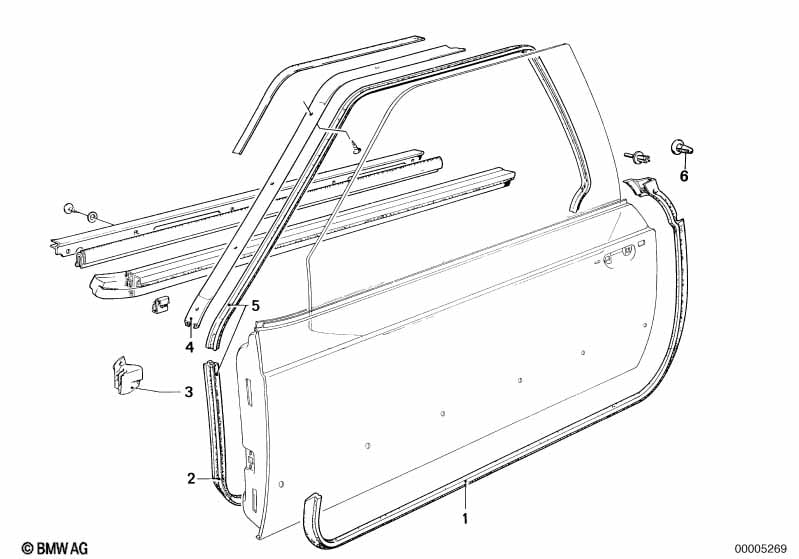

This Door weatherstrip front technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door weatherstrip left | 1 | 51211843923 | $119.42 | Shop at ECS Tuning | |||||
| 01 | Door weatherstrip right | 1 | 51211843924 | $119.42 | Shop at ECS Tuning | |||||
| 02 | Door weatherstrip left | 1 | 51211861499 | $390.60 | ENDED | Shop at ECS Tuning | ||||
| 02 | Door weatherstrip right | 1 | 51211861502 | $412.76 | Shop at ECS Tuning | |||||
| 03 | Gasket left | 1 | 02/1979 | 51211869921 | $11.71 | Shop at ECS Tuning | ||||
| 03 | Gasket right | 1 | 02/1979 | 51211869922 | $11.71 | Shop at ECS Tuning | ||||
| 04 | Guide rail left | 1 | 51211843829 | $32.27 | ENDED | Shop at ECS Tuning | ||||
| 04 | Guide rail right | 1 | 51211843830 | $36.20 | ENDED | Shop at ECS Tuning | ||||
| 05 | Door weatherstrip left | 1 | 51211861501 | $412.76 | Shop at ECS Tuning | |||||
| 05 | Door weatherstrip right | 1 | 51211861502 | $412.76 | Shop at ECS Tuning | |||||
| 06 | Clamp | 6 | 51221856946 | $0.44 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
