Front door-hinge/door brake for BMW 7 Series E23 728i (1982)

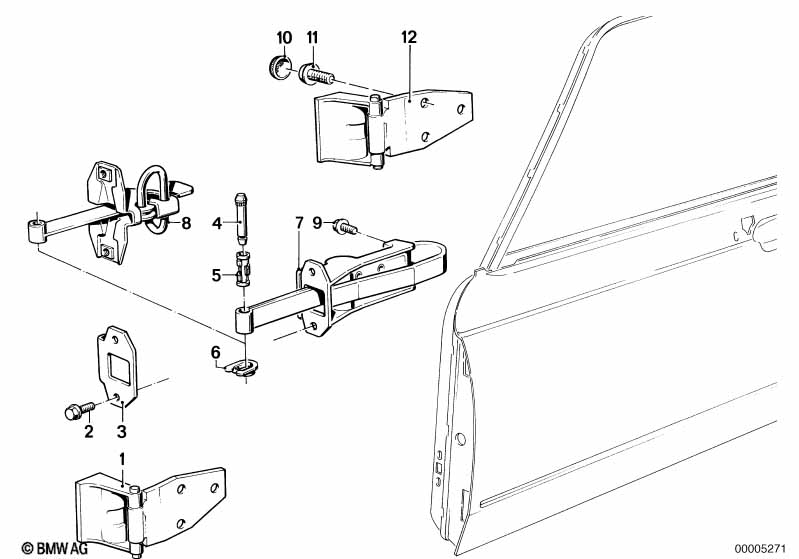

This Front door-hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hinge left | 1 | 41511873433 | $38.43 | Shop at ECS Tuning | |||||
| 01 | Hinge right | 1 | 41511873434 | $38.43 | Shop at ECS Tuning | |||||
| 02 | Hex bolt with washer | M6X18-Z3-2 | 4 | 07119915027 | $0.62 | Shop at ECS Tuning | ||||
| 03 | Stopper | 2 | 41511800150 | $3.87 | ENDED | Shop at ECS Tuning | ||||
| 04 | Pin | 2 | 51211854806 | $1.05 | Shop at ECS Tuning | |||||
| 05 | Clamp | 2 | 51211854807 | $0.53 | Shop at ECS Tuning | |||||
| 06 | Lock Ring | 2 | 51211854873 | $0.81 | Shop at ECS Tuning | |||||
| 07 | Door brake | 2 | 41511881590 | $33.13 | +core | Shop at ECS Tuning | ||||
| 08 | Door brake | 2 | 41511881590 | $33.13 | +core | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X16-Z3-2 | 2 | 07119915021 | $0.47 | Shop at ECS Tuning | ||||
| 10 | Plug | 4 | 51211800363 | $0.55 | ENDED | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M8X20-ZNNIV SI | X | 07119903039 | Shop at ECS Tuning | |||||
| 12 | Hinge left | 1 | 41511873433 | $38.43 | Shop at ECS Tuning | |||||
| 12 | Hinge right | 1 | 41511873434 | $38.43 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728i Front door-hinge/door brake?
- This technical diagram illustrates the Front door-hinge/door brake within the Bodywork group for the 7 Series E23 728i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Hinge left (Part #41511873433).
- Which models use the hardware listed in this Front door-hinge/door brake?
- The hardware and components featured in the Front door-hinge/door brake are specific to the 7 Series E23 728i produced during 1982. These technical specifications ensure that parts like the Hinge left (41511873433) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front door-hinge/door brake assembly?
- Each item in the Front door-hinge/door brake corresponds to the numbered list below the illustration. For the 7 Series E23 728i, you can identify the Hinge left by locating its position on the schematic, which then links to the official BMW part number 41511873433 for the Bodywork section.
