Door lock front for BMW 7 Series E23 735i (1985)

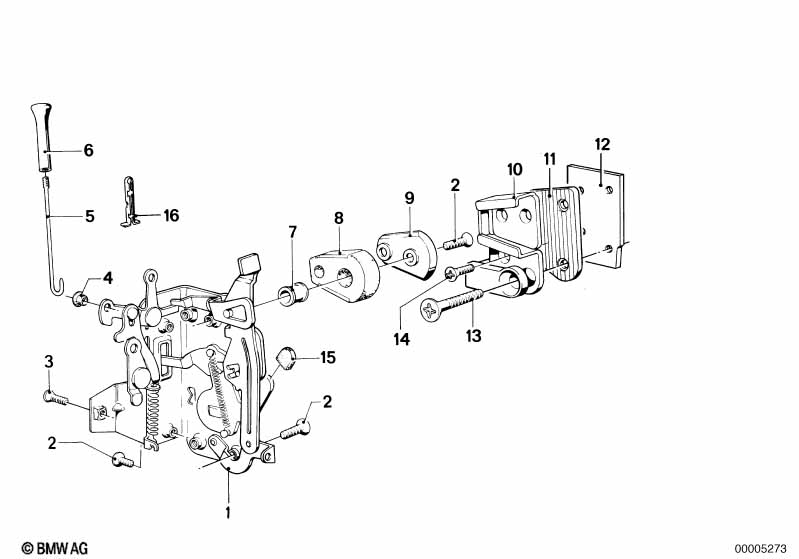

This Door lock front technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Catch front right | 1 | 04/1983 | 51211885918 | $67.24 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Central locking system |
=Yes |
|||||||||
| 01 | Catch front left | 1 | 04/1983 | 51211885921 | $67.24 | ENDED | Shop at ECS Tuning | |||
| 02 | Countersunk head screw | M6X16-8.8-ZNS3 | 4 | 07119904304 | $0.25 | Shop at ECS Tuning | ||||
| 02 | Torx-bolt with washer | ISA M6X16 | 4 | 51218100708 | $0.89 | Shop at ECS Tuning | ||||
| 03 | Countersunk head screw | M6X12 | 6 | 07119928511 | $0.07 | Shop at ECS Tuning | ||||
| 06 | Lock button | SCHWARZ | 2 | 51211852140 | $1.82 | Shop at ECS Tuning | ||||
| 07 | Bush | 2 | 51211823488 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Bump stop | 2 | 51211823487 | $6.36 | Shop at ECS Tuning | |||||
| 09 | Plate | 2 | 51211874709 | $11.68 | ENDED | Shop at ECS Tuning | ||||
| 10 | Latch Striker, left | 1 | 51211852263 | $37.49 | Shop at ECS Tuning | |||||
| 10 | Latch Striker, right | 1 | 51211852264 | $37.49 | Shop at ECS Tuning | |||||
| 11 | Spacer | X | 51211806023 | $1.17 | ENDED | Shop at ECS Tuning | ||||
| 12 | Lock plate | 1 | 51213901933 | Shop at ECS Tuning | ||||||
| 12 | Lock plate | 1 | 51213901934 | Shop at ECS Tuning | ||||||
| 13 | Countersunk head screw | M8X35 | 2 | 07119928180 | $1.63 | Shop at ECS Tuning | ||||
| 14 | Countersunk head screw | M6X16-8.8-ZNS3 | 6 | 07119904304 | $0.25 | Shop at ECS Tuning | ||||
| 15 | Bump stop | 2 | 51211809735 | $1.36 | Shop at ECS Tuning | |||||
| 16 | Bush | 2 | 04/1983 | 51211903950 | $1.11 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
