Front door control/door lock for BMW 7 Series E23 728 (1979)

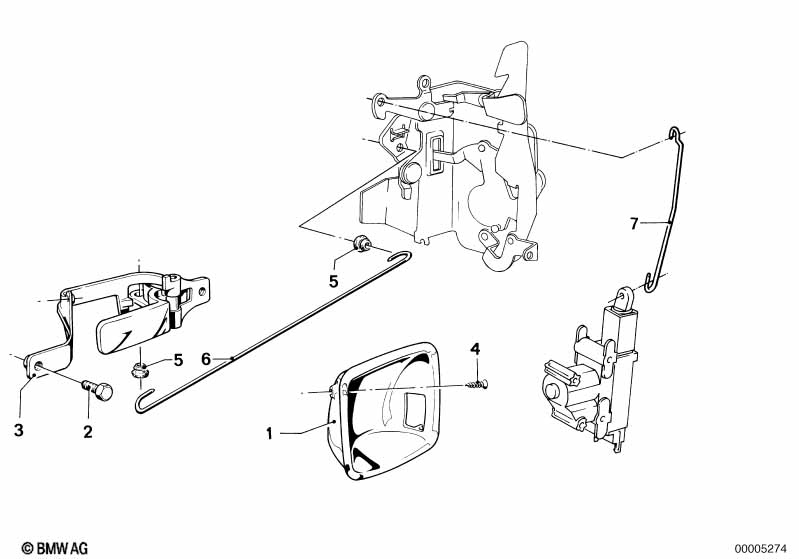

This Front door control/door lock technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left handle | HELLGRAU | 1 | 04/1983 | 51211857915 | $3.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Right handle | HELLGRAU | 1 | 04/1983 | 51211857916 | ENDED | Shop at ECS Tuning | |||
| 01 | Left handle | MARINEBLAU | 1 | 04/1983 | 51211857917 | ENDED | Shop at ECS Tuning | |||
| 01 | Right handle | MARINEBLAU | 1 | 04/1983 | 51211857918 | $2.71 | ENDED | Shop at ECS Tuning | ||
| 01 | Left handle | NYLONBRAUN | 1 | 04/1983 | 51211858631 | $11.19 | ENDED | Shop at ECS Tuning | ||
| 01 | Right handle | NYLONBRAUN | 1 | 04/1983 | 51211858632 | $11.19 | ENDED | Shop at ECS Tuning | ||
| 01 | Left handle | SCHWARZ | 1 | 04/1983 | 51211858633 | $7.03 | ENDED | Shop at ECS Tuning | ||
| 01 | Right handle | SCHWARZ | 1 | 04/1983 | 51211858634 | $7.03 | ENDED | Shop at ECS Tuning | ||
| 01 | Left handle | PINIENGRUEN | 1 | 04/1983 | 51211904061 | $12.50 | ENDED | Shop at ECS Tuning | ||
| 01 | Right handle | PINIENGRUEN | 1 | 04/1983 | 51211904062 | ENDED | Shop at ECS Tuning | |||
| 02 | Hex bolt with washer | M6X12-Z3-1 | 8 | 04/1983 | 07119915033 | $1.07 | Shop at ECS Tuning | |||
| 03 | Door handle, inside left | 2 | 04/1983 | 51211848881 | $22.52 | ENDED | Shop at ECS Tuning | |||
| 03 | Door handle inner right | 2 | 04/1983 | 51211848882 | $16.89 | Shop at ECS Tuning | ||||
| 04 | Recessed oval head sheet-metal screw | ST2,9X9,5 | 4 | 04/1983 | 07119902399 | $0.98 | ENDED | Shop at ECS Tuning | ||
| 05 | Grommet | 8 | 04/1983 | 52208238999 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Connection rod, driver's side | 1 | 04/1983 | 51211852663 | $11.98 | ENDED | Shop at ECS Tuning | |||
| 06 | Connection rod, passenger's side | 1 | 04/1983 | 51211852664 | $1.70 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
