Locking system, door, front for BMW 6 Series E24 633CSi (1979)

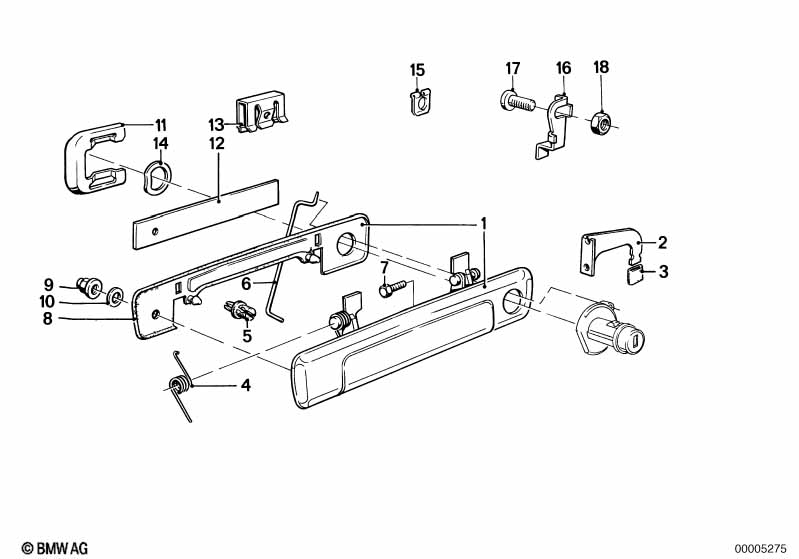

This Locking system, door, front technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door handle outer left | 1 | 51211847587 | $91.04 | Shop at ECS Tuning | |||||
| 01 | Door handle outer right | 1 | 51211847588 | $91.04 | Shop at ECS Tuning | |||||
| 02 | Stopper | 1 | 51211959691 | $19.87 | Shop at ECS Tuning | |||||
| 02 | Stopper | 1 | 51211959692 | $19.87 | Shop at ECS Tuning | |||||
| 03 | Cap | 2 | 51211847767 | $0.43 | ENDED | Shop at ECS Tuning | ||||
| 04 | Spring left | 1 | 51211847131 | $3.53 | ENDED | Shop at ECS Tuning | ||||
| 04 | Spring right | 1 | 51211847132 | $3.53 | ENDED | Shop at ECS Tuning | ||||
| 05 | Circlip | 2 | 51221817032 | $0.31 | Shop at ECS Tuning | |||||
| 06 | Connection rod | 2 | 51211839257 | $5.79 | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M5X10-Z5-1 | 2 | 07119915051 | $0.30 | Shop at ECS Tuning | ||||
| 08 | Handle padding left | 1 | 51211847591 | $2.95 | Shop at ECS Tuning | |||||
| 08 | Handle padding right | 1 | 51211847592 | $2.95 | Shop at ECS Tuning | |||||
| 09 | Self-locking hex nut | M6 | 2 | 07147153450 | $0.47 | Shop at ECS Tuning | ||||
| 10 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 11 | Clamp | 2 | 51211848744 | $0.95 | Shop at ECS Tuning | |||||
| 12 | Base plate left | 1 | 51211839747 | $15.62 | ENDED | Shop at ECS Tuning | ||||
| 12 | Base plate right | 1 | 51211839748 | $15.62 | ENDED | Shop at ECS Tuning | ||||
| 13 | Clamp | 4 | 51211847130 | $1.10 | Shop at ECS Tuning | |||||
| 14 | Washer | 1 | 23411466125 | $1.02 | Shop at ECS Tuning | |||||
| 15 | Clamp | A5 | 1 | 07129934906 | $0.53 | Shop at ECS Tuning | ||||
| 16 | Contact lever door lock heater left | 1 | 51211866539 | $2.05 | ENDED | Shop at ECS Tuning | ||||
| 17 | Screw | 1 | 51211866541 | $1.83 | Shop at ECS Tuning | |||||
| 18 | Hex nut | M5 | 1 | 07119905710 | $2.83 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
