Door weatherstrip front for BMW 7 Series E23 728iS (1986)

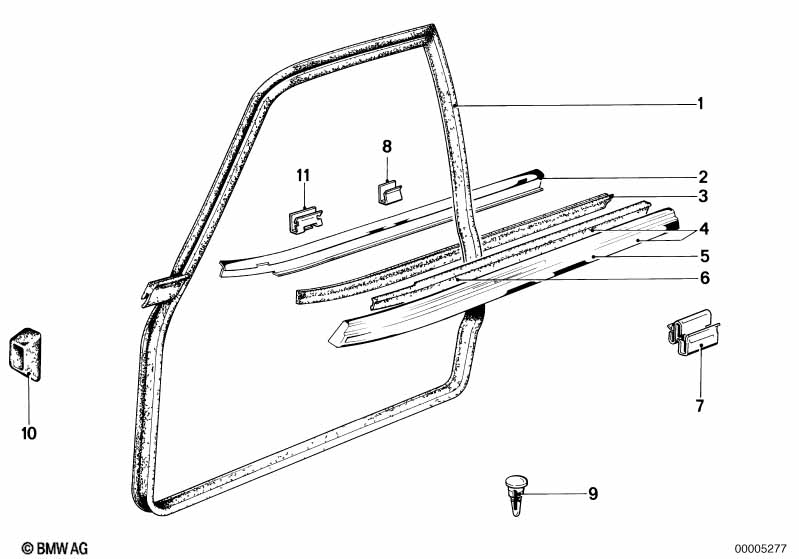

This Door weatherstrip front technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728iS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door sealing front left | 1 | 51211845071 | $101.02 | Shop at ECS Tuning | |||||
| 01 | Door sealing front right | 1 | 51211845072 | $97.29 | Shop at ECS Tuning | |||||
| 02 | Moulding, front left | SCHWARZ | 1 | 51211959697 | $27.62 | ENDED | Shop at ECS Tuning | |||
| 02 | Moulding, front right | SCHWARZ | 1 | 51211959698 | $34.04 | ENDED | Shop at ECS Tuning | |||
| 02 | Moulding, front left | 1 | 09/1983 | 51211886511 | $21.65 | ENDED | Shop at ECS Tuning | |||
| 02 | Moulding, front right | 1 | 09/1983 | 51211886512 | $21.65 | ENDED | Shop at ECS Tuning | |||
| 03 | Door weatherstrip inner | 3 | 51211886503 | $18.03 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Moulding, front left | 1 | 51211886511 | $21.65 | ENDED | Shop at ECS Tuning | ||||
| -- | Moulding, front right | 1 | 51211886512 | $21.65 | ENDED | Shop at ECS Tuning | ||||
| 05 | Covering left | 1 | 06/1979 | 51211901089 | $97.63 | ENDED | Shop at ECS Tuning | |||
| 05 | Covering right | 1 | 06/1979 | 51211901090 | $97.63 | ENDED | Shop at ECS Tuning | |||
| 05 | Covering left | SCHWARZ | 1 | 06/1979 | 51211959699 | $117.18 | ENDED | Shop at ECS Tuning | ||
| 05 | Covering right | SCHWARZ | 1 | 06/1979 | 51211959700 | $117.18 | ENDED | Shop at ECS Tuning | ||
| 06 | Covering left | 1 | 06/1979 | 51211869961 | $19.36 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering right | 1 | 06/1979 | 51211869962 | $19.36 | ENDED | Shop at ECS Tuning | |||
| 07 | Clamp | X | 06/1979 | 51211867969 | $0.65 | ENDED | Shop at ECS Tuning | |||
| 08 | Clamp | 8 | 51211860853 | $0.72 | Shop at ECS Tuning | |||||
| 09 | Clamp | 2 | 51221856946 | $0.44 | Shop at ECS Tuning | |||||
| 10 | Gasket | 2 | 51211854683 | $1.98 | ENDED | Shop at ECS Tuning | ||||
| 11 | Clamp | 2 | 51211836269 | $10.87 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
