Central locking system for BMW 7 Series E23 733i (1979)

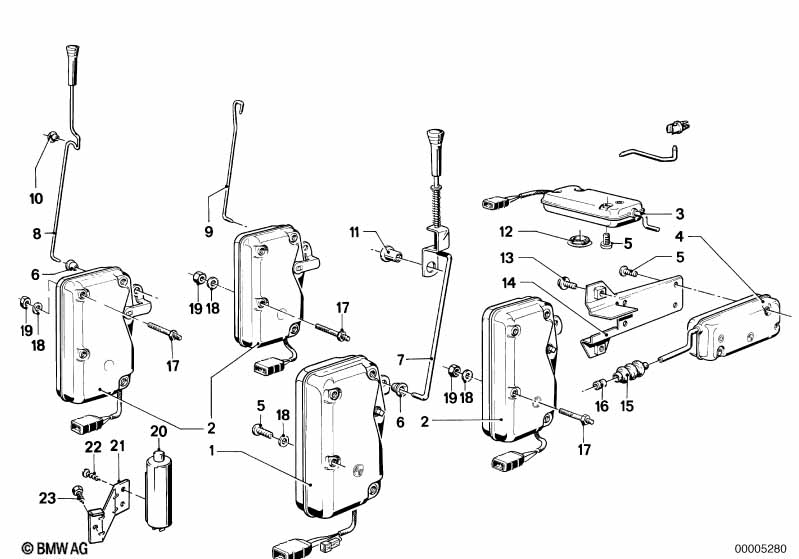

This Central locking system technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Central locking door | 1 | 01/1981 | 51261363596 | $363.98 | Shop at ECS Tuning | ||||
| 02 | Central locking door | 3 | 01/1981 | 51261363595 | ENDED | Shop at ECS Tuning | ||||
| 03 | Central locking trunk lid | 1 | 01/1981 | 51261363597 | $114.93 | ENDED | Shop at ECS Tuning | |||
| 04 | Central locking fill-in flap | 1 | 01/1981 | 51261363592 | ENDED | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | M5X16-Z3-2 | X | 01/1981 | 07119906817 | $0.45 | Shop at ECS Tuning | |||
| 05 | Hex bolt with washer | M5X16-Z3 | X | 01/1981 | 07119915111 | $2.01 | ENDED | Shop at ECS Tuning | ||
| 06 | Circlip | 4 | 01/1981 | 51221817032 | $0.31 | Shop at ECS Tuning | ||||
| 07 | Connection rod, driver's side | 1 | 01/1981 | 51211856932 | ENDED | Shop at ECS Tuning | ||||
| 08 | Connection rod, passenger's side | 1 | 01/1981 | 51211852253 | ENDED | Shop at ECS Tuning | ||||
| 09 | Lever left | 1 | 01/1981 | 51221848481 | ENDED | Shop at ECS Tuning | ||||
| 09 | Lever right | 1 | 01/1981 | 51221848482 | $1.31 | ENDED | Shop at ECS Tuning | |||
| 10 | Grommet | 4 | 01/1981 | 52208238999 | $0.40 | Shop at ECS Tuning | ||||
| 11 | Rivet | 1 | 01/1981 | 51211856937 | $0.77 | ENDED | Shop at ECS Tuning | |||
| 12 | Blind plug | D=18,5MM | 1 | 01/1981 | 51211838473 | $1.34 | Shop at ECS Tuning | |||
| 13 | Hex bolt with washer | M6X16-SB-Z3-2 | 2 | 01/1981 | 07119915022 | $0.30 | Shop at ECS Tuning | |||
| 14 | Holder | 1 | 01/1981 | 51251858098 | $10.63 | ENDED | Shop at ECS Tuning | |||
| 15 | Rubber boot | 1 | 01/1981 | 51251852771 | $1.53 | Shop at ECS Tuning | ||||
| 16 | Sleeve | 1 | 01/1981 | 51258116266 | $1.10 | Shop at ECS Tuning | ||||
| 17 | Grub screw | 3 | 01/1981 | 61131365564 | $9.15 | ENDED | Shop at ECS Tuning | |||
| 18 | Wave washer | B5 | 6 | 01/1981 | 07119932098 | $0.38 | Shop at ECS Tuning | |||
| 19 | Hex nut | M5-8-ZNNIV SI | 3 | 01/1981 | 07119905729 | Shop at ECS Tuning | ||||
| 20 | Emergency switch | 1 | 01/1981 | 61311363806 | $47.99 | Shop at ECS Tuning | ||||
| 21 | Holder | 1 | 01/1981 | 61311365846 | ENDED | Shop at ECS Tuning | ||||
| 22 | Sheet metal screw | 3,5X9,5 | 2 | 01/1981 | 07119904455 | $2.45 | Shop at ECS Tuning | |||
| 23 | Hex head screw | B5,5X13 | 2 | 01/1981 | 07119916872 | ENDED | Shop at ECS Tuning |
