Central locking system for BMW 5 Series E12 525 (1981)

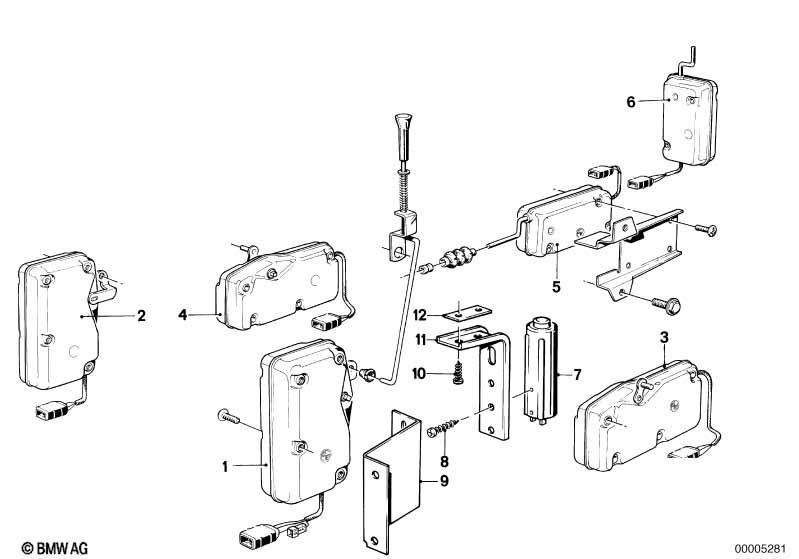

This Central locking system technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Central locking door | 1 | 08/1977 | 51261363596 | $363.98 | Shop at ECS Tuning | ||||
| 02 | Central locking door | 1 | 08/1977 | 51261363595 | ENDED | Shop at ECS Tuning | ||||
| 03 | Central locking door | 1 | 08/1977 | 51261363593 | $75.96 | ENDED | Shop at ECS Tuning | |||
| 04 | Central locking door | 1 | 08/1977 | 51261363594 | ENDED | Shop at ECS Tuning | ||||
| 05 | Central locking fill-in flap | 1 | 08/1977 | 51261363592 | ENDED | Shop at ECS Tuning | ||||
| 06 | Central locking trunk lid | 1 | 08/1980 | 51261368614 | $114.93 | Shop at ECS Tuning | ||||
| 07 | Emergency switch | 1 | 08/1977 | 61311363806 | $47.99 | Shop at ECS Tuning | ||||
| 08 | Fillister head self-tapping screw | ST3,5X9,5 | 2 | 08/1977 | 07/1981 | 07119906717 | $0.25 | ENDED | Shop at ECS Tuning | |
| 10 | Fillister head self-tapping screw | ST4,2X13 | 2 | 08/1977 | 07119906748 | $0.18 | Shop at ECS Tuning | |||
| 11 | Holder | 1 | 08/1977 | 61311364220 | $2.27 | ENDED | Shop at ECS Tuning | |||
| 12 | Spacer | 1 | 08/1977 | 61311365601 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 525 Central locking system?
- This technical diagram illustrates the Central locking system within the Bodywork group for the 5 Series E12 525 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Central locking door (Part #51261363596).
- Which models use the hardware listed in this Central locking system?
- The hardware and components featured in the Central locking system are specific to the 5 Series E12 525 produced during 1981. These technical specifications ensure that parts like the Central locking door (51261363596) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Central locking system assembly?
- Each item in the Central locking system corresponds to the numbered list below the illustration. For the 5 Series E12 525, you can identify the Central locking door by locating its position on the schematic, which then links to the official BMW part number 51261363596 for the Bodywork section.
