Door handle front/lock/key for BMW 3 Series E30 325i (1993)

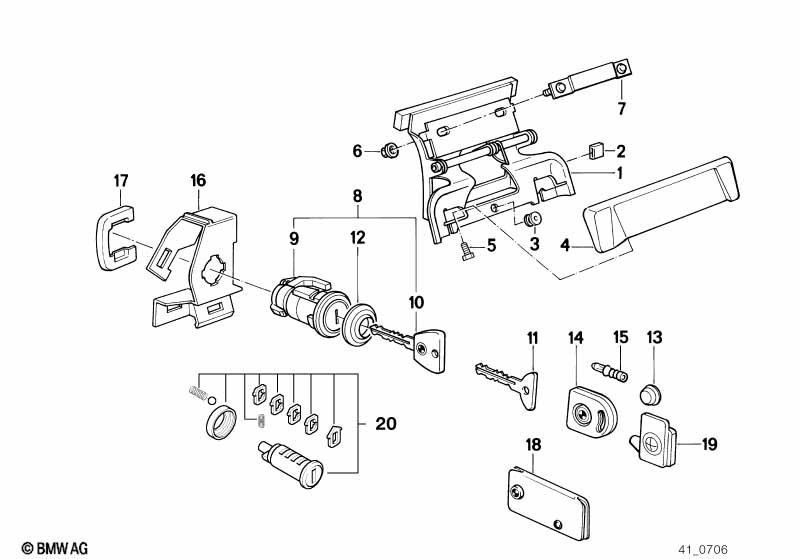

This Door handle front/lock/key technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Base door handle left | 1 | 09/1990 | 51211904629 | $28.65 | Shop at ECS Tuning | ||||
| 01 | Base door handle right | 1 | 09/1990 | 51211904630 | $28.65 | Shop at ECS Tuning | ||||
| 02 | Sleeve | 2 | 51211802016 | $7.57 | ENDED | Shop at ECS Tuning | ||||
| 03 | Distance rubber | 4 | 51711916537 | $3.55 | ENDED | Shop at ECS Tuning | ||||
| 04 | Handle | 2 | 51211923996 | $14.81 | Shop at ECS Tuning | |||||
| 05 | Fillister head screw | M4X10-Z5 | 4 | 51211916992 | $0.58 | ENDED | Shop at ECS Tuning | |||
| 06 | Self-locking hex nut | M6 | 4 | 07147153450 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Lock plate | 2 | 51211906540 | $1.96 | Shop at ECS Tuning | |||||
| For vehicles with Central locking system |
=Yes |
|||||||||
| 08 | Catch with key left | 1 | 51211911065 | $49.68 | Shop at ECS Tuning | |||||
| 08 | Catch with key right | 1 | 51211924904 | $81.41 | Shop at ECS Tuning | |||||
| 09 | Lock with code, left | 1 | 51211911063 | $83.31 | Shop at ECS Tuning | |||||
| 09 | Catch with key code right | 1 | 51211911064 | $83.31 | Shop at ECS Tuning | |||||
| For vehicles with Central locking system |
=Yes |
|||||||||
| 09 | Catch with key code right | 1 | 51211924902 | ENDED | Shop at ECS Tuning | |||||
| 10 | Standard key (code) | SERVICE | X | 32321109800 | $37.40 | Shop at ECS Tuning | ||||
| 10 | Standard key (blank) | SERVICE | X | 32321109801 | $24.93 | Shop at ECS Tuning | ||||
| 10 | General key (code) | CODE* 10001 | X | 51211900875 | $45.95 | Shop at ECS Tuning | ||||
| 10 | General key illuminated (code) | CODE* 10001 | X | 51211900876 | $45.95 | Shop at ECS Tuning | ||||
| 10 | General key (blank) | CODE* 10001 | X | 51211900892 | $30.64 | Shop at ECS Tuning | ||||
| 10 | General key illuminated (blank) | CODE* 10001 | X | 51211900894 | $30.64 | Shop at ECS Tuning | ||||
| 11 | General key (code) | CODE* 10001 | X | 51211900877 | $45.95 | ENDED | Shop at ECS Tuning | |||
| 11 | General key (blank) | CODE* 10001 | X | 51211900893 | $30.64 | ENDED | Shop at ECS Tuning | |||
| 12 | Trim ring | X | 51211865246 | $1.10 | Shop at ECS Tuning | |||||
| The battery is to be installed directly in the corresponding control unit/key on site. It is not permitted to sell the battery if it is not installed. Old batteries must be properly disposed of. |
||||||||||
| 13 | Battery | 1,5 V - PX625A | X | 32321151013 | $8.03 | Shop at ECS Tuning | ||||
| 14 | Key head illuminated | X | 32329056354 | $13.75 | ENDED | Shop at ECS Tuning | ||||
| 15 | Bulb | 0.13W | X | 51211935001 | $3.00 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 16 | Clamping plate left | 1 | 51211913967 | $6.36 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 16 | Clamping plate right | 1 | 51211902292 | Shop at ECS Tuning | ||||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 17 | Clamp | 1 | 51211913969 | $0.97 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 17 | Clamp | 1 | 51211838035 | $1.11 | Shop at ECS Tuning | |||||
| 18 | Key case | 1 | 51218213607 | $9.15 | Shop at ECS Tuning | |||||
| 19 | Light storage compartment | 1 | 51218105039 | $22.38 | Shop at ECS Tuning | |||||
| 20 | Repair kit lock cylinder right | 1 | 51219061344 | $42.69 | Shop at ECS Tuning | |||||
| 20 | Rep.kit f lock cylinder | 1 | 51219556313 | $31.81 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
