Door lock front for BMW 5 Series E28 M5 (1988)

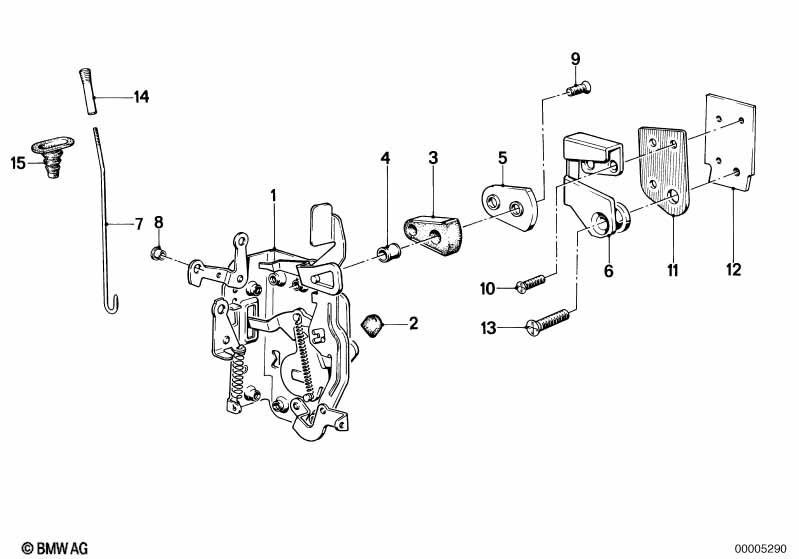

This Door lock front technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door lock front left | 1 | 51211876697 | ENDED | Shop at ECS Tuning | |||||
| 01 | Door lock front right | 1 | 51211876698 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Central locking system |
=Yes |
|||||||||
| 01 | Door lock front left | 1 | 08/1985 | 51211959601 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lock front right | 1 | 08/1985 | 51211959602 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bump stop | 2 | 51211809735 | $1.36 | Shop at ECS Tuning | |||||
| 03 | Bump stop | 2 | 51211823487 | $6.36 | Shop at ECS Tuning | |||||
| 04 | Bush | 2 | 51211823488 | $1.38 | Shop at ECS Tuning | |||||
| 05 | Plate | 2 | 51211874709 | $11.68 | ENDED | Shop at ECS Tuning | ||||
| 06 | Latch Striker, left | 1 | 51211872833 | $14.86 | Shop at ECS Tuning | |||||
| 06 | Latch Striker, right | 1 | 51211872834 | $14.86 | Shop at ECS Tuning | |||||
| 07 | Operating rod | 2 | 51211879663 | $1.23 | Shop at ECS Tuning | |||||
| 08 | Grommet | 2 | 52208238999 | $0.40 | Shop at ECS Tuning | |||||
| 09 | Countersunk head screw | M6X12 | X | 07119928511 | $0.07 | Shop at ECS Tuning | ||||
| 09 | Torx-bolt with washer | ISA M6X16 | X | 51218100708 | $0.89 | Shop at ECS Tuning | ||||
| 10 | Countersunk head screw | M6X16-8.8-ZNS3 | 8 | 07119904304 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Spacer | 2 | 51211806023 | $1.17 | ENDED | Shop at ECS Tuning | ||||
| 12 | Locker plate left | 1 | 51211851493 | $4.06 | Shop at ECS Tuning | |||||
| 12 | Locker plate right | 1 | 51211851494 | $4.06 | Shop at ECS Tuning | |||||
| 12 | Lock plate | 1 | 51213901933 | Shop at ECS Tuning | ||||||
| 12 | Lock plate | 1 | 51213901934 | Shop at ECS Tuning | ||||||
| 13 | Countersunk head screw | M8X35 | 2 | 07119928180 | $1.63 | Shop at ECS Tuning | ||||
| 14 | Lock button | SCHWARZ | 2 | 51211852140 | $1.82 | Shop at ECS Tuning | ||||
| 15 | Rubber boot | 2 | 51211902717 | $1.82 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
