Central locking system for BMW 5 Series E28 520i (1988)

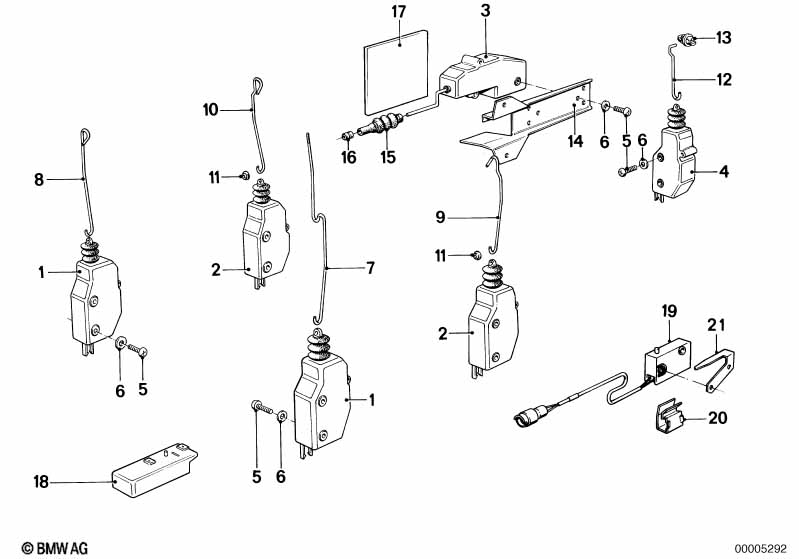

This Central locking system technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Actuator drivers side | 1 | 04/1985 | 51261375953 | $132.27 | Shop at ECS Tuning | ||||
| 01 | Actuator co-drivers side | 1 | 04/1985 | 51261375954 | $132.27 | Shop at ECS Tuning | ||||
| 02 | Actuator | 2 | 04/1985 | 51261375955 | $132.27 | Shop at ECS Tuning | ||||
| 03 | Actuator | 1 | 04/1985 | 51261375957 | $138.88 | ENDED | Shop at ECS Tuning | |||
| 04 | Actuator | 1 | 04/1985 | 51261375956 | $138.88 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | L=20,8MM | X | 51261372068 | $4.23 | ENDED | Shop at ECS Tuning | |||
| 06 | Washer | 4-200 HV-ZNS3 | X | 07119904207 | Shop at ECS Tuning | |||||
| 07 | Connection piece left | 1 | 11/1986 | 51211953295 | $2.96 | ENDED | Shop at ECS Tuning | |||
| 08 | Connection piece right | 1 | 11/1986 | 51211953296 | $2.96 | ENDED | Shop at ECS Tuning | |||
| 09 | Connection rod | 1 | 11/1986 | 51221953297 | $1.31 | ENDED | Shop at ECS Tuning | |||
| 10 | Connection rod | 1 | 11/1986 | 51221953298 | $1.31 | ENDED | Shop at ECS Tuning | |||
| 11 | Grommet | 2 | 52208238999 | $0.40 | Shop at ECS Tuning | |||||
| 12 | Connection rod | 1 | 51241876059 | $1.98 | ENDED | Shop at ECS Tuning | ||||
| 13 | Circlip | 1 | 51221817032 | $0.31 | Shop at ECS Tuning | |||||
| 14 | Holder | 1 | 51251858098 | $10.63 | ENDED | Shop at ECS Tuning | ||||
| 15 | Rubber boot | 1 | 51251852771 | $1.53 | Shop at ECS Tuning | |||||
| 16 | Sleeve | 1 | 51258116266 | $1.10 | Shop at ECS Tuning | |||||
| 17 | Base | 1 | 51471852859 | $0.78 | ENDED | Shop at ECS Tuning | ||||
| 18 | Emergency switch | 1 | 61311381788 | $147.41 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 19 | Microswitch | 1 | 09/1984 | 61311375138 | $53.02 | ENDED, +core | Shop at ECS Tuning | |||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 19 | Microswitch | 1 | 09/1983 | 61311375137 | $53.02 | Shop at ECS Tuning | ||||
| 20 | Clamp | 2 | 09/1983 | 61131368986 | $1.93 | ENDED | Shop at ECS Tuning | |||
| 21 | Lever left | 1 | 09/1983 | 61311368987 | $4.46 | Shop at ECS Tuning | ||||
| 21 | Lever right | 1 | 09/1983 | 61311372660 | $2.88 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
