Door handle front/lock/key for BMW 5 Series E28 520i (1988)

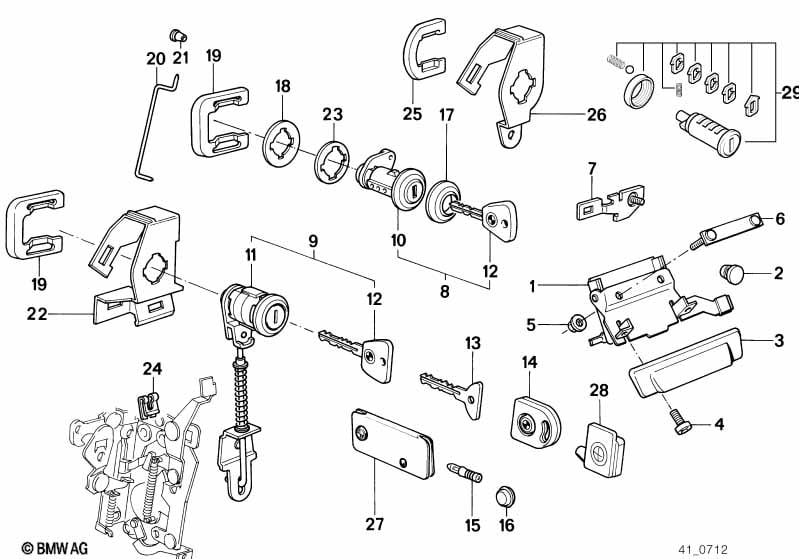

This Door handle front/lock/key technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Base door handle left | 1 | 51211904493 | $40.26 | ENDED | Shop at ECS Tuning | ||||
| 01 | Base door handle right | 1 | 51211904494 | $40.26 | ENDED | Shop at ECS Tuning | ||||
| 03 | Handle | 2 | 51211919083 | $17.31 | ENDED | Shop at ECS Tuning | ||||
| 04 | Fillister head screw | M4X10-Z5 | 4 | 51211916992 | $0.58 | ENDED | Shop at ECS Tuning | |||
| 05 | Self-locking hex nut | M6 | 4 | 07147153450 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Lock plate | 2 | 51211832811 | $6.31 | Shop at ECS Tuning | |||||
| 07 | Holder | 1 | 51211882784 | ENDED | Shop at ECS Tuning | |||||
| 08 | Catch with key left | 1 | 51211901539 | $55.62 | ENDED | Shop at ECS Tuning | ||||
| 08 | Catch with key right | 1 | 51211901540 | $55.62 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Central locking system |
=Yes |
|||||||||
| 09 | Catch with key right | 1 | 01/1985 | 51211900872 | $48.55 | ENDED | Shop at ECS Tuning | |||
| 09 | Catch with key left | 1 | 01/1985 | 51211901539 | $55.62 | ENDED | Shop at ECS Tuning | |||
| 10 | Lock with code, left | 1 | 51211901537 | $79.12 | Shop at ECS Tuning | |||||
| 10 | Catch with key code right | 1 | 51211901538 | $88.97 | Shop at ECS Tuning | |||||
| 11 | Catch with key code right | CODE* 10.001 | 1 | 01/1985 | 51211900870 | ENDED | Shop at ECS Tuning | |||
| 11 | Lock with code, left | 1 | 01/1985 | 51211901537 | $79.12 | Shop at ECS Tuning | ||||
| 12 | Standard key (code) | SERVICE | X | 32321109800 | $37.40 | Shop at ECS Tuning | ||||
| 12 | Standard key (blank) | SERVICE | X | 32321109801 | $24.93 | Shop at ECS Tuning | ||||
| 12 | General key illuminated (code) | *CODE 5000 | X | 51211151006 | Shop at ECS Tuning | |||||
| 12 | General key illuminated (blank) | *CODE 5000 | X | 51211151014 | $25.15 | Shop at ECS Tuning | ||||
| 12 | General key (code) | CODE* 10001 | X | 51211900875 | $45.95 | Shop at ECS Tuning | ||||
| 12 | General key illuminated (code) | CODE* 10001 | X | 51211900876 | $45.95 | Shop at ECS Tuning | ||||
| 12 | General key (blank) | CODE* 10001 | X | 51211900892 | $30.64 | Shop at ECS Tuning | ||||
| 12 | General key illuminated (blank) | CODE* 10001 | X | 51211900894 | $30.64 | Shop at ECS Tuning | ||||
| 13 | General key (code) | CODE* 10001 | X | 51211900877 | $45.95 | ENDED | Shop at ECS Tuning | |||
| 13 | General key (blank) | CODE* 10001 | X | 51211900893 | $30.64 | ENDED | Shop at ECS Tuning | |||
| 14 | Key head illuminated | X | 32329056354 | $13.75 | ENDED | Shop at ECS Tuning | ||||
| 15 | Bulb | 0,15W | X | 32321151012 | $2.35 | Shop at ECS Tuning | ||||
| 15 | Bulb | 0.13W | X | 51211927724 | $3.13 | Shop at ECS Tuning | ||||
| 15 | Bulb | 0.13W | 1 | 51211935001 | $3.00 | Shop at ECS Tuning | ||||
| The battery is to be installed directly in the corresponding control unit/key on site. It is not permitted to sell the battery if it is not installed. Old batteries must be properly disposed of. |
||||||||||
| 16 | Battery | 1,5 V - PX625A | X | 32321151013 | $8.03 | Shop at ECS Tuning | ||||
| 17 | Trim ring | X | 51211865246 | $1.10 | Shop at ECS Tuning | |||||
| 18 | Washer | X | 51211889459 | $2.78 | ENDED | Shop at ECS Tuning | ||||
| 19 | Clamp | X | 51211848744 | $0.95 | Shop at ECS Tuning | |||||
| For vehicles with Central locking system Driver's side |
=Yes |
|||||||||
| 19 | Clamp | X | 51211838035 | $1.11 | Shop at ECS Tuning | |||||
| 20 | Connection rod | X | 51211847396 | $1.76 | Shop at ECS Tuning | |||||
| 21 | Circlip | X | 51221817032 | $0.31 | Shop at ECS Tuning | |||||
| For vehicles with Central locking system Driver's side |
=Yes |
|||||||||
| 22 | Clamping plate right | 1 | 51211902292 | Shop at ECS Tuning | ||||||
| 23 | Base | X | 51211889499 | $1.09 | Shop at ECS Tuning | |||||
| 24 | Clamp | A5 | X | 07129934906 | $0.53 | Shop at ECS Tuning | ||||
| For vehicles with Central locking system ONLY APPLIES TO CO-DRIVERS SIDE |
=Yes |
|||||||||
| 25 | Clamp | 1 | 51211913969 | $0.97 | Shop at ECS Tuning | |||||
| 26 | Clamping plate left | 1 | 51211913967 | $6.36 | Shop at ECS Tuning | |||||
| 27 | Key case | 1 | 51218213607 | $9.15 | Shop at ECS Tuning | |||||
| 28 | Light storage compartment | 1 | 51218105039 | $22.38 | Shop at ECS Tuning | |||||
| 29 | Rep.kit f lock cylinder | 2 | 51219556315 | $35.56 | ENDED | Shop at ECS Tuning | ||||
| 29 | Repair kit lock cylinder right | 1 | 01/1985 | 51219061342 | $35.56 | ENDED | Shop at ECS Tuning | |||
| 29 | Rep.kit f lock cylinder | 1 | 01/1985 | 51219556315 | $35.56 | ENDED | Shop at ECS Tuning | |||
