Central locking system for BMW 3 Series E30 324td (1991)

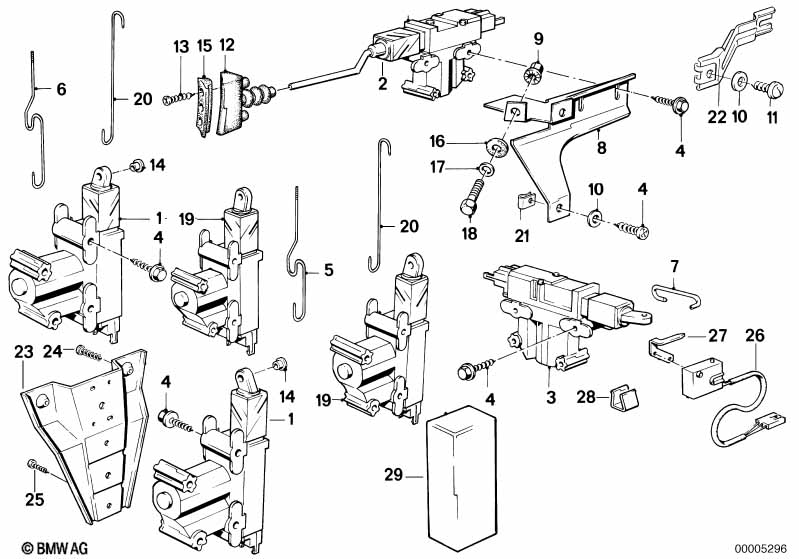

This Central locking system technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 324td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO CO-DRIVERS SIDE ACTUATOR FOR DOOR LOCK BRACKET |
||||||||||
| 01 | Actuator f front door | 1 | 05/1990 | 51261394367 | $128.96 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO DRIVER'S SIDE ACTUATOR FOR DOOR LOCK BRACKET |
||||||||||
| 01 | Actuator f front door | 1 | 05/1990 | 51261394366 | $128.96 | Shop at ECS Tuning | ||||
| 02 | Filler flap actuator | 1 | 51261385119 | $124.88 | Shop at ECS Tuning | |||||
| 03 | Actuator f trunk lid | 1 | 51261385115 | $135.20 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | L=16MM | X | 51261375979 | $0.41 | Shop at ECS Tuning | ||||
| 05 | Connection piece left | 1 | 51211945595 | $1.31 | Shop at ECS Tuning | |||||
| 06 | Connection piece right | 1 | 51211945596 | $1.73 | Shop at ECS Tuning | |||||
| 07 | Connection rod | 1 | 51241947385 | ENDED | Shop at ECS Tuning | |||||
| 08 | Holder | 1 | 51251904748 | $10.63 | ENDED | Shop at ECS Tuning | ||||
| 09 | Self-locking hex nut | M6 | 1 | 51417053138 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Washer | 5.3-140 HV-ZNS | 3 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 11 | Fillister head self-tapping screw | ST4,8X13 | 3 | 07119907786 | $0.11 | Shop at ECS Tuning | ||||
| 12 | Rubber boot | 1 | 51251906493 | $8.97 | Shop at ECS Tuning | |||||
| 13 | Fillister head self-tapping screw | ST3,5X19 | 2 | 07119907905 | $0.09 | Shop at ECS Tuning | ||||
| 14 | Grommet | 2 | 51211937233 | $0.65 | Shop at ECS Tuning | |||||
| 15 | Holder | 1 | 51251916469 | $1.00 | Shop at ECS Tuning | |||||
| 16 | Rubber washer | 1 | 34414045712 | $0.20 | Shop at ECS Tuning | |||||
| 17 | Washer | A6,4-ZNNIV SI | 1 | 07119904202 | Shop at ECS Tuning | |||||
| 18 | Hex bolt | M6X12-8.8-ZNNIV | 1 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| ACTUATOR FOR DOOR LOCK BRACKET | ||||||||||
| 19 | Actuator f rear door | 2 | 05/1990 | 51261394368 | $135.00 | Shop at ECS Tuning | ||||
| 20 | Connection rod | 2 | 51221906878 | $1.55 | Shop at ECS Tuning | |||||
| 21 | Body nut | ST 4,8-4-ZNS3 | 2 | 07129904224 | $0.11 | Shop at ECS Tuning | ||||
| 23 | Bracket, control unit | 1 | 61311370734 | $4.16 | Shop at ECS Tuning | |||||
| 24 | Fillister head self-tapping screw | ST4,8X13 | 1 | 07119907786 | $0.11 | Shop at ECS Tuning | ||||
| 25 | Fillister head self-tapping screw | ST2,9X6,5 | 1 | 07119907906 | $0.25 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 26 | Microswitch | 1 | 61311375137 | $53.02 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 26 | Microswitch | 1 | 61311375137 | $53.02 | Shop at ECS Tuning | |||||
| For vehicles with Alarm systems ONLY APPLIES TO DRIVER'S SIDE |
=Yes |
|||||||||
| 26 | Microswitch | 1 | 61311375138 | $53.02 | ENDED, +core | Shop at ECS Tuning | ||||
| 27 | Lever left | 1 | 61311368987 | $4.46 | Shop at ECS Tuning | |||||
| 27 | Lever right | 1 | 61311372660 | $2.88 | ENDED | Shop at ECS Tuning | ||||
| 28 | Clamp | 2 | 61131368986 | $1.93 | ENDED | Shop at ECS Tuning | ||||
| 29 | Emergency switch | 1 | 61311380302 | $214.70 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
