Door lock front for BMW 3 Series E30 320i (1992)

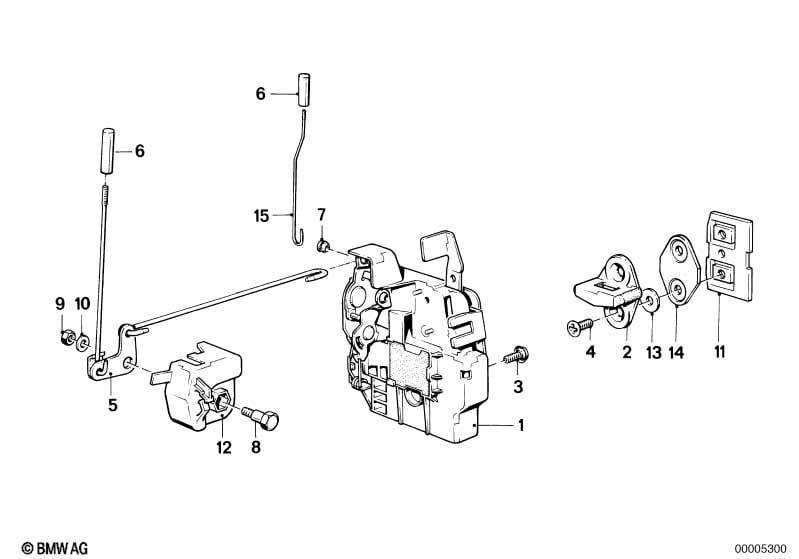

This Door lock front technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Door lock front left | 1 | 51211922843 | $231.54 | Shop at ECS Tuning | |||||
| 01 | Door lock front right | 1 | 51211922844 | $231.54 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Central locking system |
L807A=Yes =Yes |
|||||||||
| 01 | Door lock with actuator bracket left | 1 | 05/1990 | 51218103483 | $231.54 | Shop at ECS Tuning | ||||
| 01 | Door lock with actuator bracket right | 1 | 05/1990 | 51218103484 | $231.54 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 02 | Latch Striker | 2 | 51211936615 | $14.69 | Shop at ECS Tuning | |||||
| 03 | Torx-bolt with washer | ISA M6X16 | 6 | 51218100708 | $0.89 | Shop at ECS Tuning | ||||
| 04 | Countersunk head screw | M8X20 | X | 07119928175 | $0.30 | ENDED | Shop at ECS Tuning | |||
| 04 | Countersunk head screw | M8X16 | X | 07119928176 | $0.35 | ENDED | Shop at ECS Tuning | |||
| 04 | Torx-countersunk head screw | M8X18 | X | 51211928850 | $0.52 | Shop at ECS Tuning | ||||
| 05 | Lever left | 1 | 51211904559 | ENDED | Shop at ECS Tuning | |||||
| 05 | Lever right | 1 | 51211904560 | $13.31 | ENDED | Shop at ECS Tuning | ||||
| 06 | Lock button | SCHWARZ | 2 | 51211805643 | $1.26 | Shop at ECS Tuning | ||||
| 07 | Grommet | 2 | 52208238999 | $0.40 | Shop at ECS Tuning | |||||
| 08 | Collar screw | 2 | 51211906548 | $0.69 | ENDED | Shop at ECS Tuning | ||||
| 09 | Hex nut with plate | AM6-8-ZNNIV SI | 2 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 11 | Lock plate | 2 | 41351888409 | $1.40 | ENDED | Shop at ECS Tuning | ||||
| 12 | Covering left | 1 | 51211906549 | $1.93 | Shop at ECS Tuning | |||||
| 12 | Covering right | 1 | 51211906550 | $1.93 | ENDED | Shop at ECS Tuning | ||||
| 13 | Washer-gasket | 4 | 51211916544 | $0.31 | Shop at ECS Tuning | |||||
| 14 | Washer | 2 MM | 2 | 51211969766 | $1.82 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
