Door lock front for BMW 3 Series E30 316i (1994)

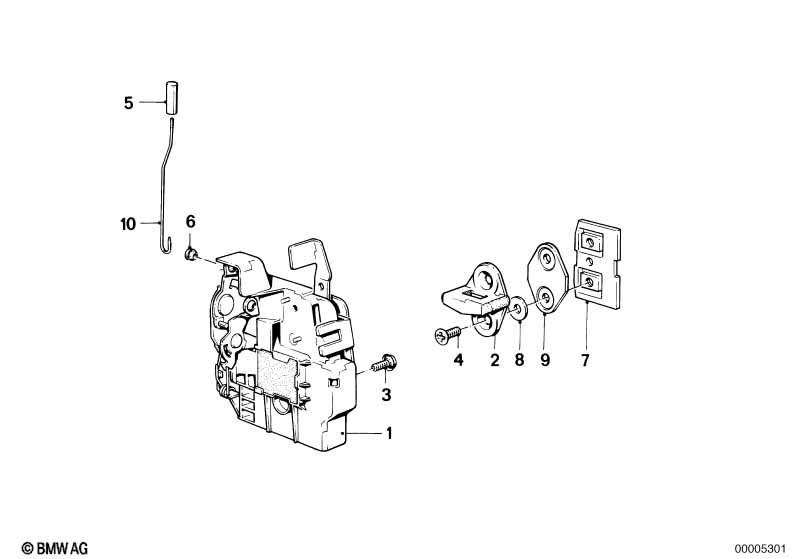

This Door lock front technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door lock front left | 1 | 51211922845 | $231.54 | Shop at ECS Tuning | |||||
| 01 | Door lock front right | 1 | 51211922846 | $231.54 | Shop at ECS Tuning | |||||
| For vehicles with Central locking system |
=Yes |
|||||||||
| 01 | Door lock front left | 1 | 51211922845 | $231.54 | Shop at ECS Tuning | |||||
| 01 | Door lock front right | 1 | 51211922846 | $231.54 | Shop at ECS Tuning | |||||
| 02 | Latch Striker | 2 | 51211936615 | $14.69 | Shop at ECS Tuning | |||||
| 03 | Torx-bolt with washer | ISA M6X16 | 6 | 51218100708 | $0.89 | Shop at ECS Tuning | ||||
| 04 | Countersunk head screw | M8X20 | X | 07119928175 | $0.30 | ENDED | Shop at ECS Tuning | |||
| 04 | Countersunk head screw | M8X16 | X | 07119928176 | $0.35 | ENDED | Shop at ECS Tuning | |||
| 04 | Torx-countersunk head screw | M8X18 | X | 51211928850 | $0.52 | Shop at ECS Tuning | ||||
| 05 | Lock button | SCHWARZ | 2 | 51211852140 | $1.82 | Shop at ECS Tuning | ||||
| 06 | Grommet | 2 | 52208238999 | $0.40 | Shop at ECS Tuning | |||||
| 07 | Lock plate | 2 | 41351888409 | $1.40 | ENDED | Shop at ECS Tuning | ||||
| 08 | Washer-gasket | 4 | 51211916544 | $0.31 | Shop at ECS Tuning | |||||
| 09 | Washer | 2 MM | 2 | 51211969766 | $1.82 | Shop at ECS Tuning | ||||
| 10 | Lever left | 1 | 51211916067 | $2.08 | Shop at ECS Tuning | |||||
| 10 | Lever right | 1 | 51211916068 | $2.08 | ENDED | Shop at ECS Tuning | ||||
| 10 | Lever left | 1 | 51211979833 | ENDED | Shop at ECS Tuning | |||||
| 10 | Lever right | 1 | 51211979834 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
