Door, rear for BMW 7 Series E23 735i (1982)

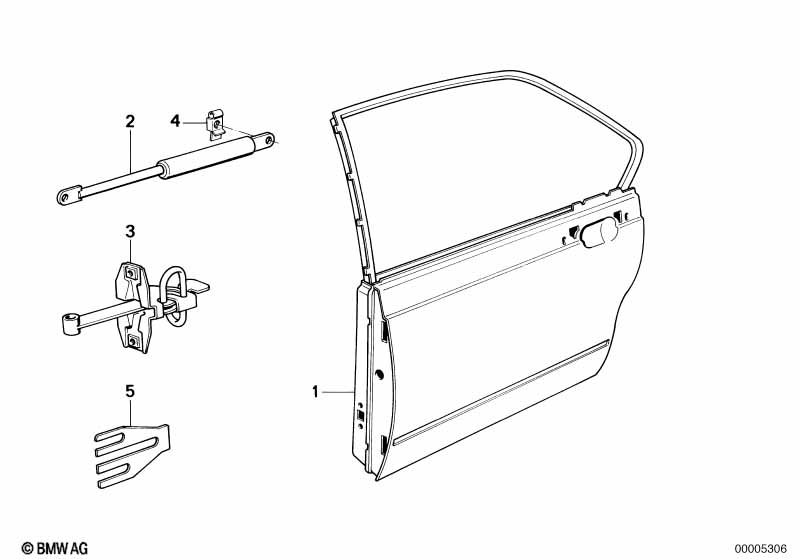

This Door, rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door rear left | 1 | 10/1982 | 41521878455 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door rear right | 1 | 10/1982 | 41521878456 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gas pressurized spring | 4 | 10/1982 | 51211878067 | ENDED | Shop at ECS Tuning | ||||
| 04 | Circlip | B8 | 2 | 07129904492 | Shop at ECS Tuning | |||||
| 05 | Hinge spacer | 1,0MM | X | 41511878381 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
