Rear door - hinge/door brake for BMW 7 Series E23 735i (1986)

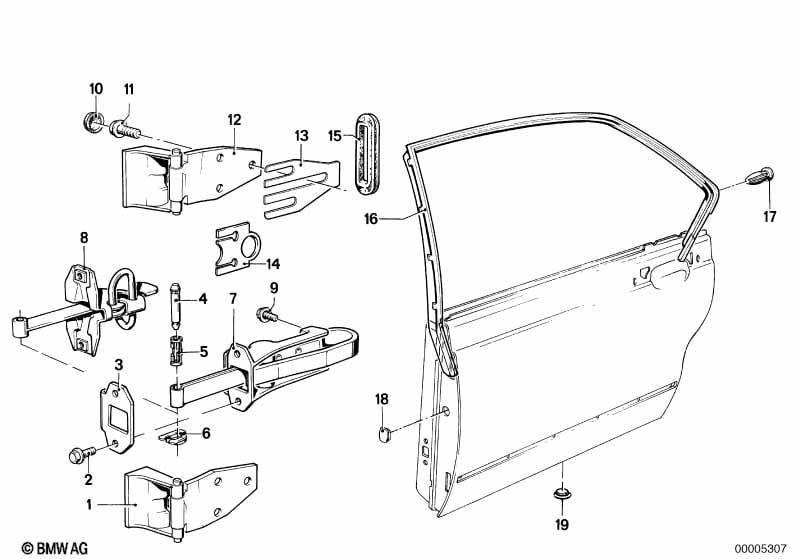

This Rear door - hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hinge left | 1 | 41511873433 | $38.43 | Shop at ECS Tuning | |||||
| 01 | Hinge right | 1 | 41511873434 | $38.43 | Shop at ECS Tuning | |||||
| 02 | Hex bolt with washer | M6X18-Z3-2 | 4 | 07119915027 | $0.62 | Shop at ECS Tuning | ||||
| 03 | Stopper | 2 | 41511800150 | $3.87 | ENDED | Shop at ECS Tuning | ||||
| 04 | Pin | 2 | 51211854806 | $1.05 | Shop at ECS Tuning | |||||
| 05 | Clamp | 2 | 51211854807 | $0.53 | Shop at ECS Tuning | |||||
| 06 | Lock Ring | 2 | 51211854873 | $0.81 | Shop at ECS Tuning | |||||
| 07 | Door brake | 2 | 41511881590 | $33.13 | +core | Shop at ECS Tuning | ||||
| 08 | Door brake | 2 | 41521884074 | $36.33 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M6X16-Z3-2 | 2 | 07119915021 | $0.47 | Shop at ECS Tuning | ||||
| 10 | Plug | 4 | 51211800363 | $0.55 | ENDED | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M8X20-ZNNIV SI | X | 07119903039 | Shop at ECS Tuning | |||||
| 12 | Hinge left | 1 | 41511873433 | $38.43 | Shop at ECS Tuning | |||||
| 12 | Hinge right | 1 | 41511873434 | $38.43 | Shop at ECS Tuning | |||||
| 14 | Hinge spacer | 1,00MM | X | 41511873064 | $2.52 | Shop at ECS Tuning | ||||
| 15 | Gasket | 4 | 51211807212 | $2.73 | Shop at ECS Tuning | |||||
| 16 | Window frame rear left | 1 | 41521858919 | ENDED | Shop at ECS Tuning | |||||
| 16 | Window frame rear right | 1 | 41521858920 | ENDED | Shop at ECS Tuning | |||||
| 17 | Blind plug | D=3,7MM | 2 | 51711850078 | $0.21 | Shop at ECS Tuning | ||||
| 19 | Blind plug | D=18,5MM | 2 | 51211838473 | $1.34 | Shop at ECS Tuning |
