Door weatherstrip rear for BMW 5 Series E12 520 (1976)

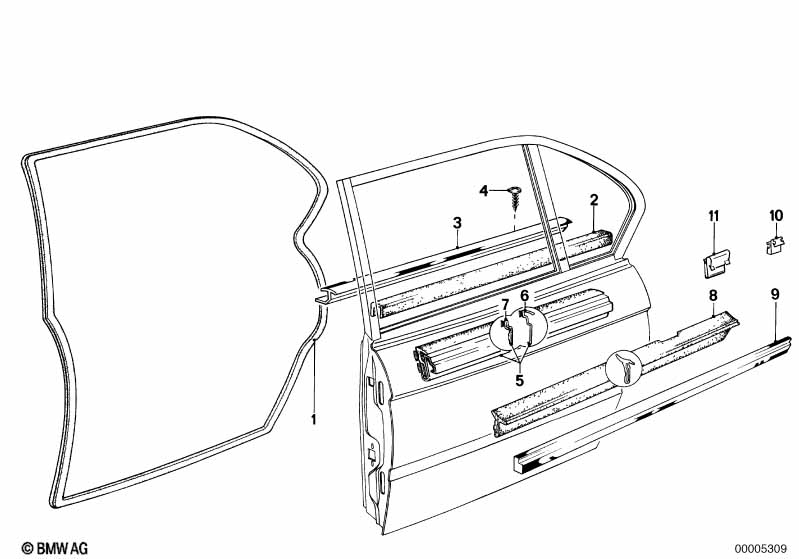

This Door weatherstrip rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door weatherstrip rear left | 1 | 51221826277 | $90.68 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door weatherstrip rear right | 1 | 51221826278 | $90.68 | ENDED | Shop at ECS Tuning | ||||
| 02 | Door weatherstrip inner | 2 | 51221864675 | $15.03 | Shop at ECS Tuning | |||||
| 03 | Waist rail trim strip, left rear | 1 | 51221809693 | $53.07 | Shop at ECS Tuning | |||||
| 03 | Waist rail trim strip, right rear | 1 | 51221809694 | $53.07 | Shop at ECS Tuning | |||||
| 04 | Fillister head self-tapping screw | ST4,2X13-Z2 | 8 | 07119907939 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Door weather strip outer left | 1 | 51221808777 | $121.59 | ENDED | Shop at ECS Tuning | ||||
| 05 | Door weather strip outer right | 1 | 51221808778 | $114.89 | ENDED | Shop at ECS Tuning | ||||
| 06 | Sealing lip type | 2 | 51211854295 | $25.16 | Shop at ECS Tuning | |||||
| 07 | Brush | 2 | 51211854296 | $15.32 | Shop at ECS Tuning | |||||
| 08 | Door weather strip outer left | 1 | 51221864289 | $18.27 | Shop at ECS Tuning | |||||
| 08 | Door weather strip outer right | 1 | 51221864290 | $18.27 | Shop at ECS Tuning | |||||
| 09 | Molding left | 1 | 51221864917 | $82.21 | Shop at ECS Tuning | |||||
| 09 | Molding right | 1 | 51221864918 | $82.21 | ENDED | Shop at ECS Tuning | ||||
| 10 | Clamp | X | 07/1978 | 51211809712 | $1.10 | ENDED | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Door weather strip outer left | X | 07/1978 | 51221808777 | $121.59 | ENDED | Shop at ECS Tuning | |||
| -- | Door weather strip outer right | X | 07/1978 | 51221808778 | $114.89 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520 Door weatherstrip rear?
- This technical diagram illustrates the Door weatherstrip rear within the Bodywork group for the 5 Series E12 520 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Door weatherstrip rear left (Part #51221826277).
- Which models use the hardware listed in this Door weatherstrip rear?
- The hardware and components featured in the Door weatherstrip rear are specific to the 5 Series E12 520 produced during 1976. These technical specifications ensure that parts like the Door weatherstrip rear left (51221826277) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door weatherstrip rear assembly?
- Each item in the Door weatherstrip rear corresponds to the numbered list below the illustration. For the 5 Series E12 520, you can identify the Door weatherstrip rear left by locating its position on the schematic, which then links to the official BMW part number 51221826277 for the Bodywork section.
