Closing system, door, rear for BMW 5 Series E12 528 (1977)

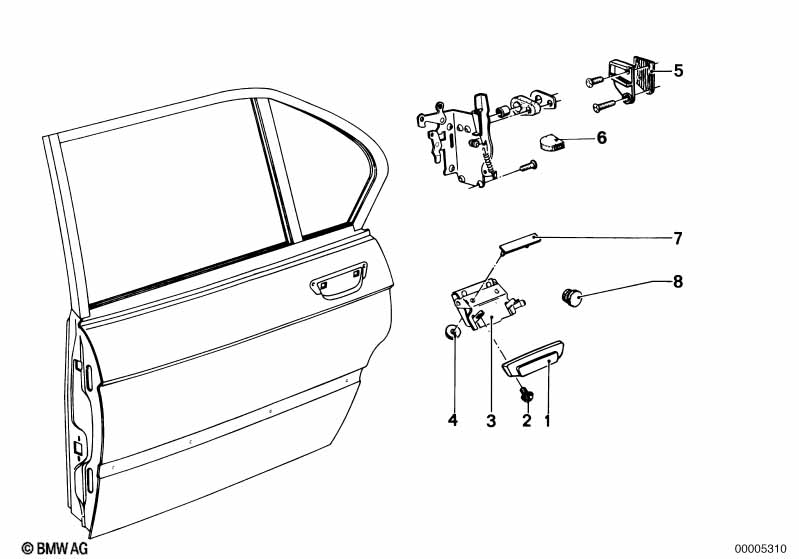

This Closing system, door, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Handle | 2 | 51211808440 | $72.39 | Shop at ECS Tuning | |||||
| 02 | Fillister head screw | M4X10-Z5 | 4 | 51211916992 | $0.58 | ENDED | Shop at ECS Tuning | |||
| 03 | Base door handle left | 1 | 51221813713 | $31.25 | ENDED | Shop at ECS Tuning | ||||
| 03 | Base door handle right | 1 | 51221813714 | $27.39 | ENDED | Shop at ECS Tuning | ||||
| 04 | Self-locking hex nut | M6 | 4 | 07147153450 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Spacer | 2 | 51211806023 | $1.17 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bump stop | 2 | 51211809735 | $1.36 | Shop at ECS Tuning | |||||
| 07 | Lock plate | 2 | 51211832811 | $6.31 | Shop at ECS Tuning | |||||
| 08 | Distance rubber | D=6MM | 4 | 51216742120 | $1.25 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528 Closing system, door, rear?
- This technical diagram illustrates the Closing system, door, rear within the Bodywork group for the 5 Series E12 528 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Handle (Part #51211808440).
- Which models use the hardware listed in this Closing system, door, rear?
- The hardware and components featured in the Closing system, door, rear are specific to the 5 Series E12 528 produced during 1977. These technical specifications ensure that parts like the Handle (51211808440) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Closing system, door, rear assembly?
- Each item in the Closing system, door, rear corresponds to the numbered list below the illustration. For the 5 Series E12 528, you can identify the Handle by locating its position on the schematic, which then links to the official BMW part number 51211808440 for the Bodywork section.
