Rear door control/door lock for BMW 7 Series E23 735i (1980)

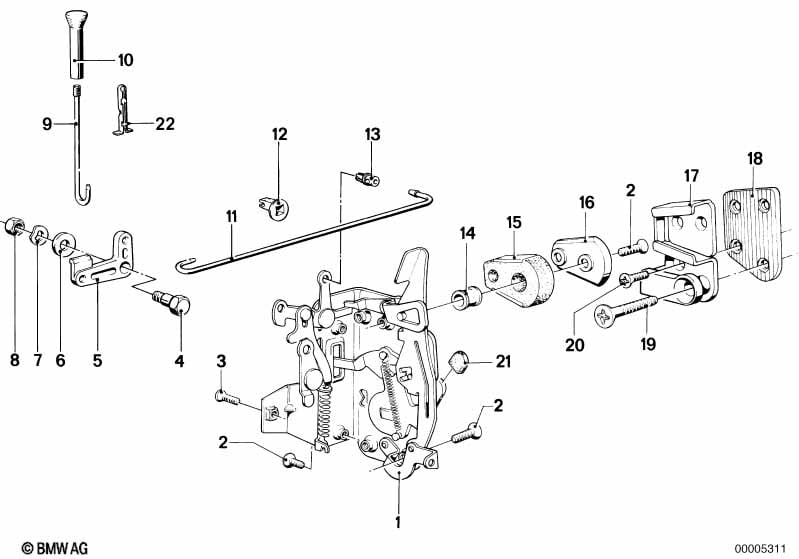

This Rear door control/door lock technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1980.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Catch rear left | 1 | 09/1982 | 51221848849 | $48.96 | ENDED | Shop at ECS Tuning | |||
| 01 | Catch rear right | 1 | 09/1982 | 51221848850 | $90.95 | ENDED | Shop at ECS Tuning | |||
| 02 | Countersunk head screw | M6X12 | X | 07119928511 | $0.07 | Shop at ECS Tuning | ||||
| 02 | Torx-bolt with washer | ISA M6X16 | X | 51218100708 | $0.89 | Shop at ECS Tuning | ||||
| 03 | Countersunk head screw | M6X16-8.8-ZNS3 | 4 | 07119904304 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Collar screw | M6 | 2 | 51221818973 | $0.69 | Shop at ECS Tuning | ||||
| 05 | Lever left | 1 | 51221819359 | $4.79 | Shop at ECS Tuning | |||||
| 05 | Lever right | 1 | 51221819360 | $4.94 | Shop at ECS Tuning | |||||
| 06 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 07 | Spring washer Black | B6-ZN | 2 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Wave washer | B6-ZNS3 | 2 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 08 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Operating rod | 2 | 51221847704 | $1.12 | ENDED | Shop at ECS Tuning | ||||
| 10 | Lock button | SCHWARZ | 2 | 51211852140 | $1.82 | Shop at ECS Tuning | ||||
| 11 | Connection rod | 2 | 51221847703 | $3.51 | ENDED | Shop at ECS Tuning | ||||
| 12 | Clamp | 4 | 51211821224 | $0.42 | Shop at ECS Tuning | |||||
| 13 | Circlip | 2 | 51221817032 | $0.31 | Shop at ECS Tuning | |||||
| 14 | Bush | 2 | 51211823488 | $1.38 | Shop at ECS Tuning | |||||
| 15 | Bump stop | 2 | 51211823487 | $6.36 | Shop at ECS Tuning | |||||
| 16 | Plate | 2 | 51211874709 | $11.68 | ENDED | Shop at ECS Tuning | ||||
| 17 | Latch Striker, left | 1 | 51211852263 | $37.49 | Shop at ECS Tuning | |||||
| 17 | Latch Striker, right | 1 | 51211852264 | $37.49 | Shop at ECS Tuning | |||||
| 18 | Spacer | 2 | 51211806023 | $1.17 | ENDED | Shop at ECS Tuning | ||||
| 19 | Countersunk head screw | M8X35 | 2 | 07119928180 | $1.63 | Shop at ECS Tuning | ||||
| 20 | Countersunk head screw | M6X16-8.8-ZNS3 | 6 | 07119904304 | $0.25 | Shop at ECS Tuning | ||||
| 21 | Bump stop | 2 | 51211809735 | $1.36 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 735i Rear door control/door lock?
- This technical diagram illustrates the Rear door control/door lock within the Bodywork group for the 7 Series E23 735i produced during 1980. It provides a detailed exploded view of the components, identifying key parts such as the Catch rear left (Part #51221848849).
- Which models use the hardware listed in this Rear door control/door lock?
- The hardware and components featured in the Rear door control/door lock are specific to the 7 Series E23 735i produced during 1980. These technical specifications ensure that parts like the Catch rear left (51221848849) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear door control/door lock assembly?
- Each item in the Rear door control/door lock corresponds to the numbered list below the illustration. For the 7 Series E23 735i, you can identify the Catch rear left by locating its position on the schematic, which then links to the official BMW part number 51221848849 for the Bodywork section.
