Rear door-door handle outer for BMW 7 Series E23 733i (1979)

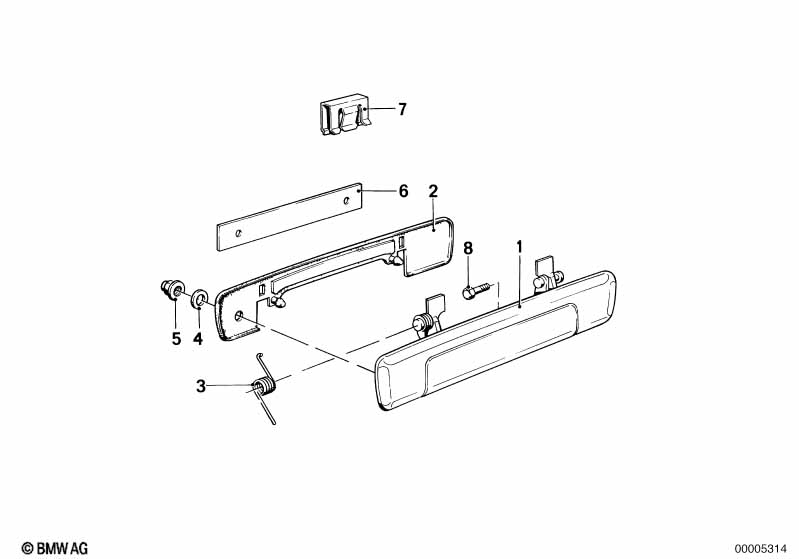

This Rear door-door handle outer technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door handle outer left | 1 | 51221847125 | $51.98 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door handle outer right | 1 | 51221847126 | $51.98 | ENDED | Shop at ECS Tuning | ||||
| 02 | Base | 2 | 51221847139 | $2.05 | Shop at ECS Tuning | |||||
| 03 | Spring left | 1 | 51211847131 | $3.53 | ENDED | Shop at ECS Tuning | ||||
| 03 | Spring right | 1 | 51211847132 | $3.53 | ENDED | Shop at ECS Tuning | ||||
| 04 | Washer | A6,4-200HV-ZNS3 | 4 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Self-locking hex nut | M6 | 4 | 07147153450 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Balance weight | 2 | 51213905653 | Shop at ECS Tuning | ||||||
| 07 | Clamp | 4 | 51211847130 | $1.10 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M5X10-Z5-1 | 2 | 07119915051 | $0.30 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
