Rear door - hinge/door brake for BMW 5 Series E28 535i (1985)

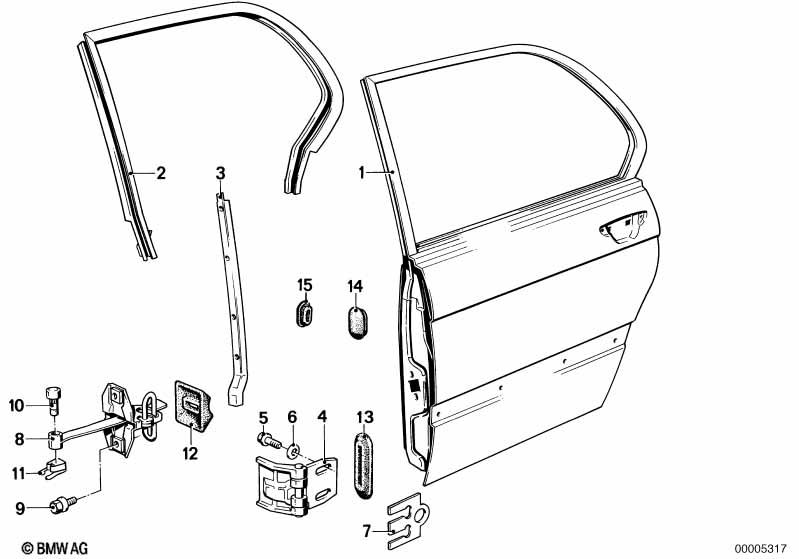

This Rear door - hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door rear left | 1 | 41522900316 | Shop at ECS Tuning | ||||||
| 01 | Door rear right | 1 | 41522900317 | Shop at ECS Tuning | ||||||
| 02 | Window frame rear left | 1 | 41521874457 | $139.50 | ENDED | Shop at ECS Tuning | ||||
| 02 | Window frame rear right | 1 | 41521874458 | $104.91 | ENDED | Shop at ECS Tuning | ||||
| 03 | Guide rail front left | 1 | 41521820581 | $16.74 | ENDED | Shop at ECS Tuning | ||||
| 03 | Guide rail front right | 1 | 41521820582 | $12.30 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hinge | 4 | 41521874226 | $41.01 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M8X25-Z4 | X | 07119915083 | $3.15 | Shop at ECS Tuning | ||||
| 06 | Washer | A8,4X25 | X | 07147201571 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Hinge spacer | 1,00MM | X | 41511873064 | $2.52 | Shop at ECS Tuning | ||||
| 07 | Hinge spacer | 1,0MM | X | 41513907182 | Shop at ECS Tuning | |||||
| 08 | Door brake | 2 | 41521925835 | $32.97 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M6X12-U2-8.8 | 4 | 07119904459 | $0.65 | Shop at ECS Tuning | ||||
| 10 | Pin | 2 | 51211875008 | $1.05 | Shop at ECS Tuning | |||||
| 11 | Lock Ring | 2 | 51211854873 | $0.81 | Shop at ECS Tuning | |||||
| 12 | Gasket | 2 | 51211875911 | $1.52 | Shop at ECS Tuning | |||||
| 13 | Gasket | 4 | 51211807212 | $2.73 | Shop at ECS Tuning | |||||
| 14 | Blind plug | 14X25.5MM | 2 | 51711863869 | $0.94 | Shop at ECS Tuning | ||||
| 15 | Blind plug | 5,5X15 | 4 | 51221875179 | $0.57 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
