Trunk lid, hinge, latch for BMW 6 Series E24 628CSi (1982)

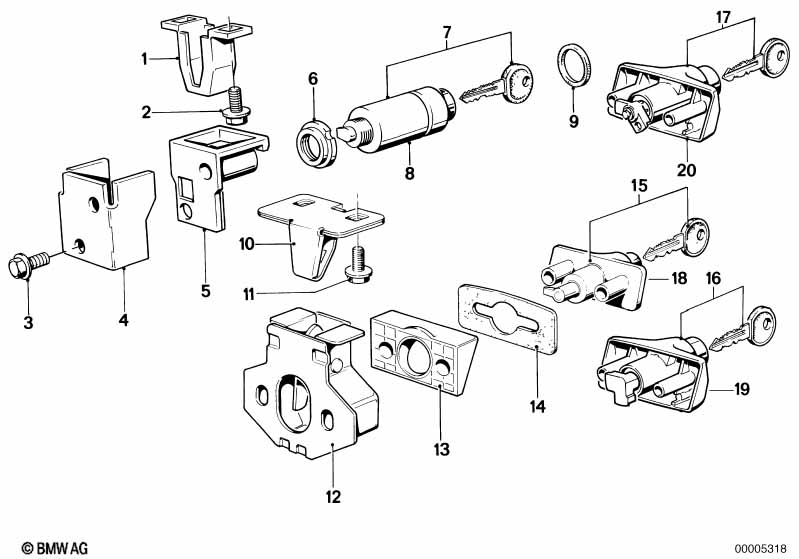

This Trunk lid, hinge, latch technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 10 | Lock | 1 | 09/1977 | 51241862459 | $33.83 | Shop at ECS Tuning | ||||
| 11 | Hex bolt with washer | M6X16-Z4-2 | 5 | 09/1977 | 07119915024 | $1.89 | Shop at ECS Tuning | |||
| 12 | Catch lower part | 1 | 09/1977 | 51241860014 | $66.06 | Shop at ECS Tuning | ||||
| 13 | Intermediate plate assy | 1 | 09/1977 | 51241862344 | $5.91 | Shop at ECS Tuning | ||||
| 14 | sealing | 1 | 09/1977 | 51241866299 | $2.53 | ENDED | Shop at ECS Tuning | |||
| 15 | Trunk lid lock with key | 1 | 09/1977 | 51241929928 | $77.53 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Central locking system |
=Yes |
|||||||||
| 17 | Trunk lid lock with key | 1 | 09/1980 | 51241876056 | $77.53 | Shop at ECS Tuning | ||||
| 18 | Catch with code | 1 | 09/1977 | 51241929929 | Shop at ECS Tuning | |||||
| For vehicles with Central locking system |
=Yes |
|||||||||
| 20 | Trunk lid lock with code | *CODE 5000 | 1 | 09/1980 | 51241876057 | $86.32 | Shop at ECS Tuning | |||
| 20 | Trunk lid lock with code | CODE* 10000 | 1 | 09/1980 | 51249069303 | $86.32 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
