Front door control/door lock for BMW 3 Series E30 320i (1992)

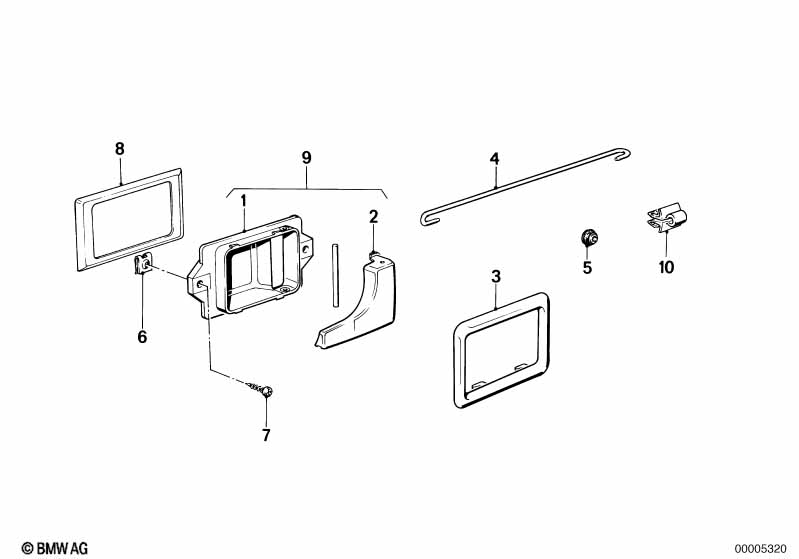

This Front door control/door lock technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 02 | Door handle, inside left | 1 | 51211926305 | $21.22 | Shop at ECS Tuning | |||||
| 02 | Door handle inner right | 1 | 51211926306 | $21.22 | Shop at ECS Tuning | |||||
| 03 | Cover | SCHWARZ | 2 | 51211876043 | $7.70 | Shop at ECS Tuning | ||||
| 03 | Cover | PERLBEIGE | 2 | 51211907929 | $7.70 | Shop at ECS Tuning | ||||
| 03 | Cover | KARMESINROT | 2 | 09/1988 | 51218112202 | ENDED | Shop at ECS Tuning | |||
| 04 | Connection rod | 2 | 51211904563 | $1.49 | ENDED | Shop at ECS Tuning | ||||
| 05 | Grommet | 2 | 52208238999 | $0.40 | Shop at ECS Tuning | |||||
| 06 | Body nut | ST 4,8-8-ZNS | 4 | 07129904227 | $0.27 | Shop at ECS Tuning | ||||
| 07 | Fillister head self-tapping screw | ST4,8X13-Z2 | 4 | 07119907957 | $0.18 | Shop at ECS Tuning | ||||
| 08 | Gasket | 2 | 51211911998 | $1.71 | Shop at ECS Tuning | |||||
| 09 | Door handle, inside left | 1 | 51211926305 | $21.22 | Shop at ECS Tuning | |||||
| 09 | Door handle inner right | 1 | 51211926306 | $21.22 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
