Rear door - hinge/door brake for BMW 3 Series E30 316i (1990)

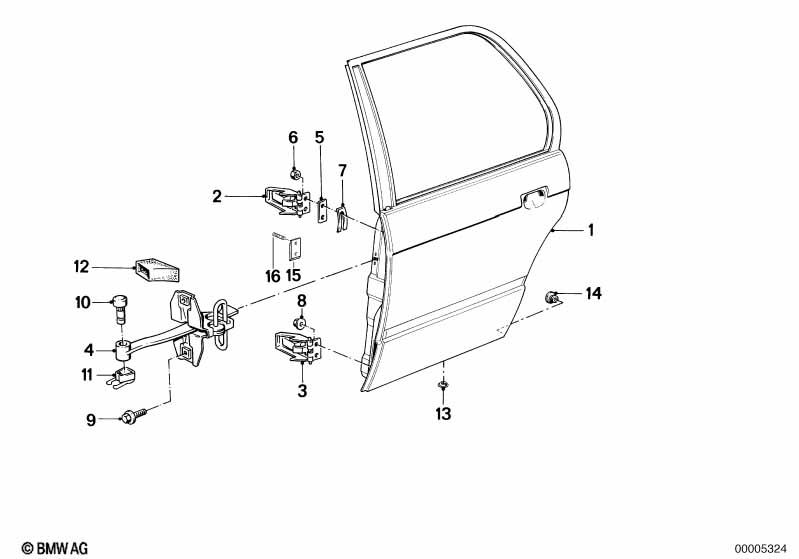

This Rear door - hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door rear left | 1 | 41528106935 | $652.86 | Shop at ECS Tuning | |||||
| 01 | Door rear right | 1 | 41528106936 | $652.86 | Shop at ECS Tuning | |||||
| 02 | Hinge | 2 | 41511904674 | Shop at ECS Tuning | ||||||
| 03 | Hinge disconnectable left | 2 | 41521911967 | $29.57 | Shop at ECS Tuning | |||||
| 03 | Hinge disconnectable right | 2 | 41521911968 | $29.57 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 316i Rear door - hinge/door brake?
- This technical diagram illustrates the Rear door - hinge/door brake within the Bodywork group for the 3 Series E30 316i produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Door rear left (Part #41528106935).
- Which models use the hardware listed in this Rear door - hinge/door brake?
- The hardware and components featured in the Rear door - hinge/door brake are specific to the 3 Series E30 316i produced during 1990. These technical specifications ensure that parts like the Door rear left (41528106935) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear door - hinge/door brake assembly?
- Each item in the Rear door - hinge/door brake corresponds to the numbered list below the illustration. For the 3 Series E30 316i, you can identify the Door rear left by locating its position on the schematic, which then links to the official BMW part number 41528106935 for the Bodywork section.
