Closing system, door, rear for BMW 3 Series E30 325i (1992)

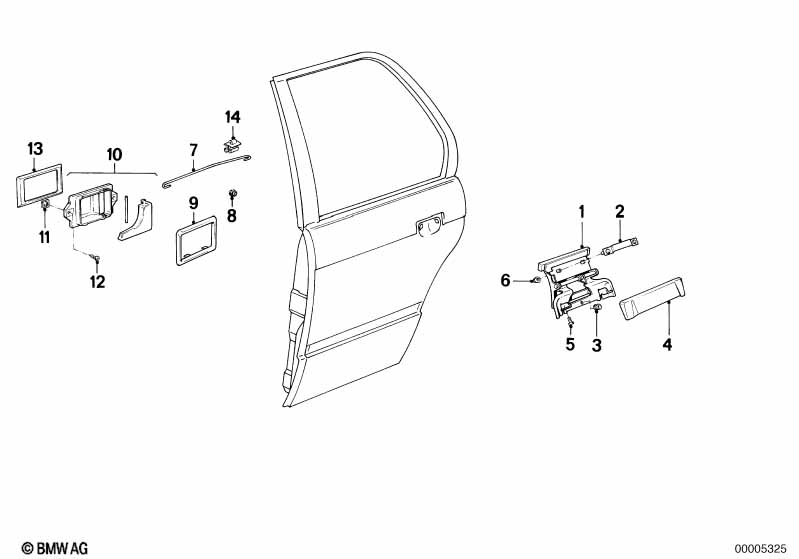

This Closing system, door, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Base door handle left | 1 | 51221906607 | $28.65 | Shop at ECS Tuning | |||||
| 01 | Base door handle right | 1 | 51221906608 | $28.65 | Shop at ECS Tuning | |||||
| 02 | Lock plate | 2 | 51211906540 | $1.96 | Shop at ECS Tuning | |||||
| 03 | Distance rubber | 4 | 51711916537 | $3.55 | ENDED | Shop at ECS Tuning | ||||
| 04 | Handle | 2 | 51211923996 | $14.81 | Shop at ECS Tuning | |||||
| 05 | Fillister head screw | M4X10-Z5 | 4 | 51211916992 | $0.58 | ENDED | Shop at ECS Tuning | |||
| 06 | Self-locking hex nut | M6 | 4 | 07147153450 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Connection rod | 2 | 51221906879 | $1.55 | ENDED | Shop at ECS Tuning | ||||
| 08 | Grommet | 4 | 52208238999 | $0.40 | Shop at ECS Tuning | |||||
| 09 | Cover | SCHWARZ | 2 | 51211876043 | $7.70 | Shop at ECS Tuning | ||||
| 10 | Door handle, inside left | 1 | 51211926305 | $21.22 | Shop at ECS Tuning | |||||
| 10 | Door handle inner right | 1 | 51211926306 | $21.22 | Shop at ECS Tuning | |||||
| 11 | Body nut | ST 4,8-8-ZNS | 4 | 07129904227 | $0.27 | Shop at ECS Tuning | ||||
| 12 | Fillister head self-tapping screw | ST4,8X13-Z2 | 4 | 07119907957 | $0.18 | Shop at ECS Tuning | ||||
| 13 | Gasket | 2 | 51211911998 | $1.71 | Shop at ECS Tuning | |||||
| 14 | Clamp | 2 | 51228202809 | $0.50 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
