Door weatherstrip rear for BMW 3 Series E30 324d (1990)

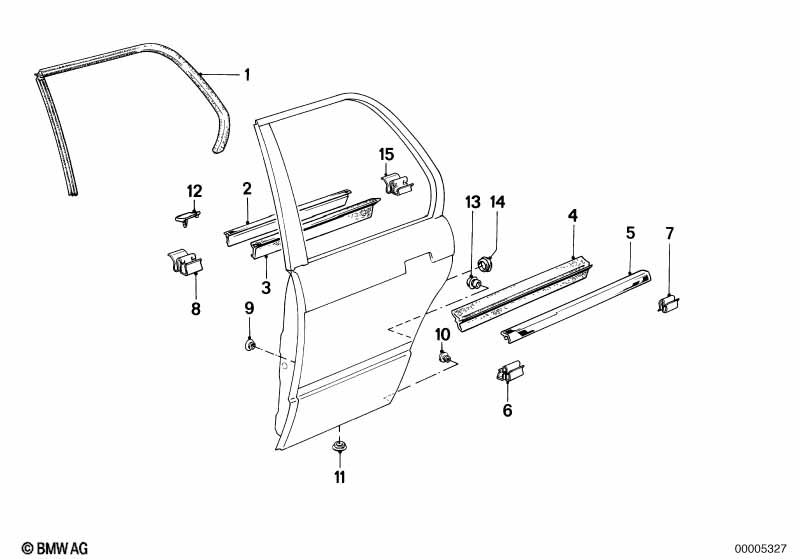

This Door weatherstrip rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 324d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gasket left | 1 | 51221888213 | $42.86 | Shop at ECS Tuning | |||||
| 01 | Gasket right | 1 | 51221888214 | $42.86 | Shop at ECS Tuning | |||||
| FOR VEHICLES WITH AND WITHOUT SHADOW-LINE |
||||||||||
| 03 | Door weather strip inner left | SCHWARZ | 1 | 09/1987 | 51221945593 | $23.60 | Shop at ECS Tuning | |||
| 03 | Door weather strip inner right | SCHWARZ | 1 | 09/1987 | 51221945594 | $23.60 | Shop at ECS Tuning | |||
| 04 | Door weather strip outer left | 1 | 51221913069 | $12.57 | Shop at ECS Tuning | |||||
| 04 | Door weather strip outer right | 1 | 51221913070 | $12.57 | Shop at ECS Tuning | |||||
| 05 | Covering left | CHROM | 1 | 51221906253 | $96.88 | Shop at ECS Tuning | ||||
| 05 | Covering right | CHROM | 1 | 51221906254 | $99.00 | Shop at ECS Tuning | ||||
| For vehicles with Shadow-Line |
=Yes |
|||||||||
| 05 | Covering left | SCHWARZ | 1 | 51221961275 | $58.77 | ENDED | Shop at ECS Tuning | |||
| 05 | Covering right | SCHWARZ | 1 | 51221961276 | $60.85 | ENDED | Shop at ECS Tuning | |||
| 06 | Clamp | 8 | 51211876087 | $0.52 | Shop at ECS Tuning | |||||
| 07 | Clamp | 6 | 51211904513 | $1.15 | Shop at ECS Tuning | |||||
| 08 | Clamp | 8 | 51211906277 | $4.33 | ENDED | Shop at ECS Tuning | ||||
| 09 | Blind plug | D=23MM | 2 | 51711904843 | $0.58 | Shop at ECS Tuning | ||||
| 10 | Blind plug | D=6MM | 2 | 51711904603 | $0.32 | Shop at ECS Tuning | ||||
| 11 | Blind plug | D=20MM | 2 | 51711964810 | $0.39 | Shop at ECS Tuning | ||||
| 12 | Clamp | 2 | 51221856946 | $0.44 | Shop at ECS Tuning | |||||
| 12 | Clamp | 2 | 51221922139 | $0.32 | Shop at ECS Tuning | |||||
| 13 | Blind plug | D=17MM | 2 | 51221924979 | $1.10 | Shop at ECS Tuning | ||||
| 14 | Blind plug | D=28MM | 2 | 51718138511 | $0.69 | Shop at ECS Tuning | ||||
| 15 | Clamp | 2 | 51221911805 | $0.68 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 324d Door weatherstrip rear?
- This technical diagram illustrates the Door weatherstrip rear within the Bodywork group for the 3 Series E30 324d produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Gasket left (Part #51221888213).
- Which models use the hardware listed in this Door weatherstrip rear?
- The hardware and components featured in the Door weatherstrip rear are specific to the 3 Series E30 324d produced during 1990. These technical specifications ensure that parts like the Gasket left (51221888213) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door weatherstrip rear assembly?
- Each item in the Door weatherstrip rear corresponds to the numbered list below the illustration. For the 3 Series E30 324d, you can identify the Gasket left by locating its position on the schematic, which then links to the official BMW part number 51221888213 for the Bodywork section.
