Front door control/door lock for BMW 7 Series E32 730i (1994)

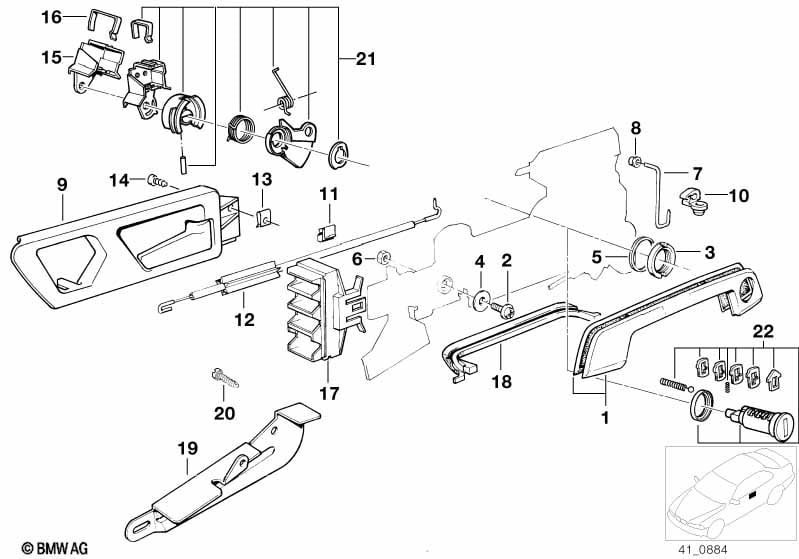

This Front door control/door lock technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering front left | 1 | 51211938285 | $22.98 | Shop at ECS Tuning | |||||
| 01 | Covering front right | 1 | 51211938286 | $22.98 | Shop at ECS Tuning | |||||
| 02 | Screw | M5X16 | 2 | 51211928269 | $0.42 | Shop at ECS Tuning | ||||
| 03 | Nut | M24X1 | 2 | 51211928307 | $3.73 | Shop at ECS Tuning | ||||
| 04 | Gasket | 2 | 51211908758 | $0.21 | Shop at ECS Tuning | |||||
| 05 | Gasket | 2 | 51211928380 | $0.21 | Shop at ECS Tuning | |||||
| 06 | Hex nut | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| 07 | Lever left | 1 | 51211938193 | $3.63 | Shop at ECS Tuning | |||||
| 07 | Lever right | 1 | 51211938194 | $3.63 | ENDED | Shop at ECS Tuning | ||||
| 07 | Lever left | 1 | 51218105147 | $3.10 | Shop at ECS Tuning | |||||
| 07 | Lever right | 1 | 51218105148 | $3.10 | Shop at ECS Tuning | |||||
| 08 | Grommet | 2 | 51211937233 | $0.65 | Shop at ECS Tuning | |||||
| 08 | Grommet | 2 | 52208238999 | $0.40 | Shop at ECS Tuning | |||||
| 09 | Door handle, inside left | 1 | 04/1992 | 51218116231 | $30.48 | ENDED | Shop at ECS Tuning | |||
| 09 | Door handle inner right | 1 | 04/1992 | 51218116232 | $30.48 | Shop at ECS Tuning | ||||
| 10 | Fixing clamp left | 1 | 51211976597 | $0.50 | Shop at ECS Tuning | |||||
| 10 | Fixing clamp right | 1 | 51211976598 | $0.79 | Shop at ECS Tuning | |||||
| 11 | Clamp | 2 | 51211928264 | $0.69 | Shop at ECS Tuning | |||||
| 12 | Bowden cable left | 1 | 51211950207 | $5.42 | Shop at ECS Tuning | |||||
| 12 | Bowden cable right | 1 | 51211950208 | $5.60 | Shop at ECS Tuning | |||||
| 13 | Plug-in nut | M5 | 2 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 14 | Hex head screw | ST4,8X30-C-Z2 | 2 | 07119900409 | $0.47 | Shop at ECS Tuning | ||||
| 15 | Housing | 1 | 51211938839 | $2.72 | Shop at ECS Tuning | |||||
| 15 | Housing right | 1 | 51211938840 | $2.72 | Shop at ECS Tuning | |||||
| 16 | Clamp | X | 51211928642 | $1.45 | Shop at ECS Tuning | |||||
| 17 | Plug-in connection bracket | X | 61131378440 | $2.03 | Shop at ECS Tuning | |||||
| 18 | Base | 2 | 51211928133 | $4.14 | Shop at ECS Tuning | |||||
| 19 | Support left | 1 | 51211963277 | $2.22 | Shop at ECS Tuning | |||||
| 19 | Support right | 1 | 51211963278 | $2.22 | Shop at ECS Tuning | |||||
| 20 | Self tapping screw | AM5X10 | 2 | 07119918403 | $0.40 | ENDED | Shop at ECS Tuning | |||
| 21 | Repair kit lock cylinder right | 1 | 51218136236 | $56.90 | ENDED | Shop at ECS Tuning | ||||
| 21 | Repair kit lock cylinder left | 1 | 11/1989 | 51218127209 | $56.90 | ENDED | Shop at ECS Tuning | |||
| 22 | Repair kit lock cylinder left | 1 | 51218105491 | $56.90 | Shop at ECS Tuning | |||||
| Important notice! Before ordering keys, central locking systems, control units (EWS immobilizer/CAS), etc., it is vital to ensure that the customer and/or vehicle owner present proof of authorization in the form of original vehicle documents and an official photo ID! A power of attorney from the vehicle owner is also required for authorised third parties. Copies of the specified credentials (proof of authorisation) must be kept in the vehicle records. Please inform BMW Service immediately if a vehicle key is lost so it can be deactivated in order to avoid taking the risk of losing the insurance cover due to gross negligence in the event of a theft. |
||||||||||
| 22 | Repair kit lock cylinder right | 1 | 51218105492 | $56.90 | Shop at ECS Tuning | |||||
| Important notice! Before ordering keys, central locking systems, control units (EWS immobilizer/CAS), etc., it is vital to ensure that the customer and/or vehicle owner present proof of authorization in the form of original vehicle documents and an official photo ID! A power of attorney from the vehicle owner is also required for authorised third parties. Copies of the specified credentials (proof of authorisation) must be kept in the vehicle records. Please inform BMW Service immediately if a vehicle key is lost so it can be deactivated in order to avoid taking the risk of losing the insurance cover due to gross negligence in the event of a theft. |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
