Door weatherstrip front for BMW 7 Series E32 740iL (1994)

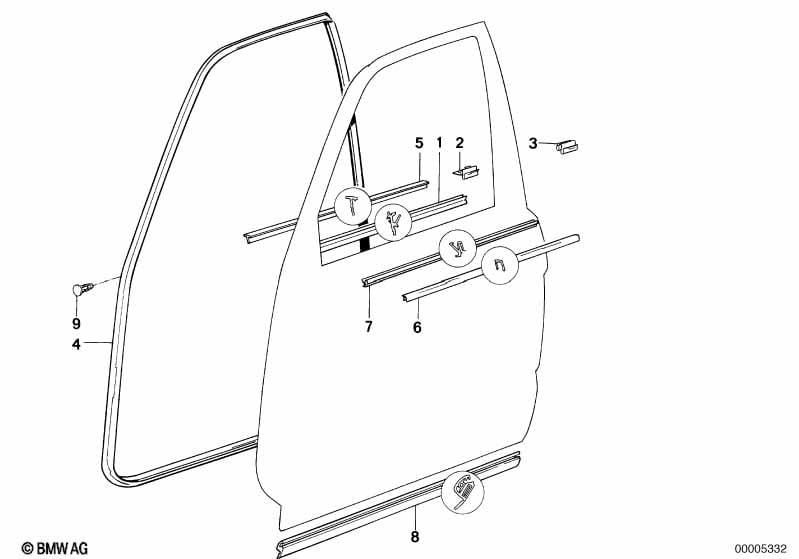

This Door weatherstrip front technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door weather strip inner left | 1 | 51218105101 | $27.60 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door weather strip inner right | 1 | 51218105102 | $27.60 | Shop at ECS Tuning | |||||
| For vehicles with Insulation glass |
=Yes |
|||||||||
| 01 | Door weather strip inner left | 1 | 51218127555 | $116.63 | +core | Shop at ECS Tuning | ||||
| 01 | Door weather strip inner right | 1 | 51218127556 | $40.18 | ENDED | Shop at ECS Tuning | ||||
| 02 | Clamp | X | 51211928189 | $1.45 | Shop at ECS Tuning | |||||
| 03 | Clamp | X | 51211908406 | $2.00 | Shop at ECS Tuning | |||||
| 04 | Gasket left | 1 | 51211938071 | $120.75 | Shop at ECS Tuning | |||||
| 04 | Gasket right | 1 | 51211938072 | $120.75 | Shop at ECS Tuning | |||||
| 05 | Moulding, front left | CHROM | 1 | 51211928185 | $54.11 | ENDED | Shop at ECS Tuning | |||
| 05 | Moulding, front right | CHROM | 1 | 51211928186 | $54.11 | ENDED | Shop at ECS Tuning | |||
| 05 | Moulding, front left | SCHWARZ | 1 | 51221969367 | $14.17 | ENDED | Shop at ECS Tuning | |||
| 05 | Moulding, front right | SCHWARZ | 1 | 51221969368 | $14.17 | Shop at ECS Tuning | ||||
| 06 | Covering left | SCHWARZ | 1 | 51131969349 | $43.23 | Shop at ECS Tuning | ||||
| 06 | Covering right | SCHWARZ | 1 | 51131969350 | $43.23 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering left | CHROM | 1 | 51211928241 | $53.15 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering right | CHROM | 1 | 51211928242 | $53.15 | Shop at ECS Tuning | ||||
| 07 | Door weather strip outer left | 1 | 51211928259 | $28.02 | ENDED | Shop at ECS Tuning | ||||
| 07 | Door weather strip outer right | 1 | 51211928260 | $28.02 | ENDED | Shop at ECS Tuning | ||||
| 08 | Covering left | 1 | 51211928007 | $33.06 | ENDED | Shop at ECS Tuning | ||||
| 08 | Covering right | 1 | 51211928008 | $33.06 | ENDED | Shop at ECS Tuning | ||||
| 09 | Clamp | 2 | 51221856946 | $0.44 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 740iL Door weatherstrip front?
- This technical diagram illustrates the Door weatherstrip front within the Bodywork group for the 7 Series E32 740iL produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Door weather strip inner left (Part #51218105101).
- Which models use the hardware listed in this Door weatherstrip front?
- The hardware and components featured in the Door weatherstrip front are specific to the 7 Series E32 740iL produced during 1994. These technical specifications ensure that parts like the Door weather strip inner left (51218105101) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door weatherstrip front assembly?
- Each item in the Door weatherstrip front corresponds to the numbered list below the illustration. For the 7 Series E32 740iL, you can identify the Door weather strip inner left by locating its position on the schematic, which then links to the official BMW part number 51218105101 for the Bodywork section.
