Rear door - hinge/door brake for BMW 7 Series E32 750iL (1993)

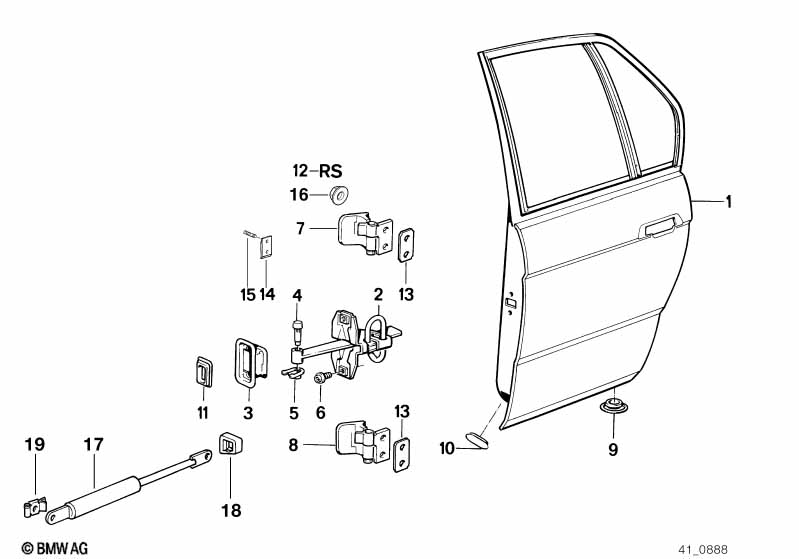

This Rear door - hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door rear left | 1 | 41528111661 | $901.17 | Shop at ECS Tuning | |||||
| 01 | Door rear right | 1 | 41528111662 | $901.17 | Shop at ECS Tuning | |||||
| 02 | Rear door brake | 2 | 51228168090 | $37.70 | Shop at ECS Tuning | |||||
| 03 | Door brake gasket | 2 | 51211938275 | $12.11 | Shop at ECS Tuning | |||||
| 04 | Pin | 2 | 51218141116 | $1.10 | Shop at ECS Tuning | |||||
| 06 | Torx bolt | ISA M6X12 | 4 | 51211973382 | $0.66 | Shop at ECS Tuning | ||||
| 07 | Left upper rear door hinge | 1 | 41521951143 | $36.86 | Shop at ECS Tuning | |||||
| 07 | Right upper rear door hinge | 1 | 41521951144 | $36.86 | ENDED | Shop at ECS Tuning | ||||
| 08 | Left lower rear door hinge | 1 | 41521951145 | $36.86 | Shop at ECS Tuning | |||||
| 08 | Right lower rear door hinge | 1 | 41521951146 | $36.86 | Shop at ECS Tuning | |||||
| 09 | Blind plug | D=18,5MM | 4 | 51211838473 | $1.34 | Shop at ECS Tuning | ||||
| 09 | Blind plug | D=20MM | 4 | 51711964810 | $0.39 | Shop at ECS Tuning | ||||
| 10 | Blind plug | 14X28 | 2 | 51211938581 | $1.69 | ENDED | Shop at ECS Tuning | |||
| 11 | Cover | 2 | 51711938836 | $0.61 | Shop at ECS Tuning | |||||
| 12 | Repair kit, hinge | X | 41511922737 | $9.60 | Shop at ECS Tuning | |||||
| CONSISTING OF PIN BUSH FLAT WASHER CIRCLIP HEX BOLT WITH WASHER |
||||||||||
| 13 | Shim | 1,0MM | X | 41517202047 | $3.02 | Shop at ECS Tuning | ||||
| 13 | Shim | 0,5MM | X | 41518173321 | $3.02 | Shop at ECS Tuning | ||||
| 14 | Lock plate | M8 | 4 | 41511925445 | $47.65 | Shop at ECS Tuning | ||||
| 15 | Stud bolt | M8X25 | 8 | 41511925444 | $8.16 | Shop at ECS Tuning | ||||
| 16 | Hex nut | M8-8-ZNS3 | 8 | 08/1994 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 16 | Hex nut | M8-8-ZNNIV SI | 8 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
