Rear door control/door lock for BMW 7 Series E32 730i (1994)

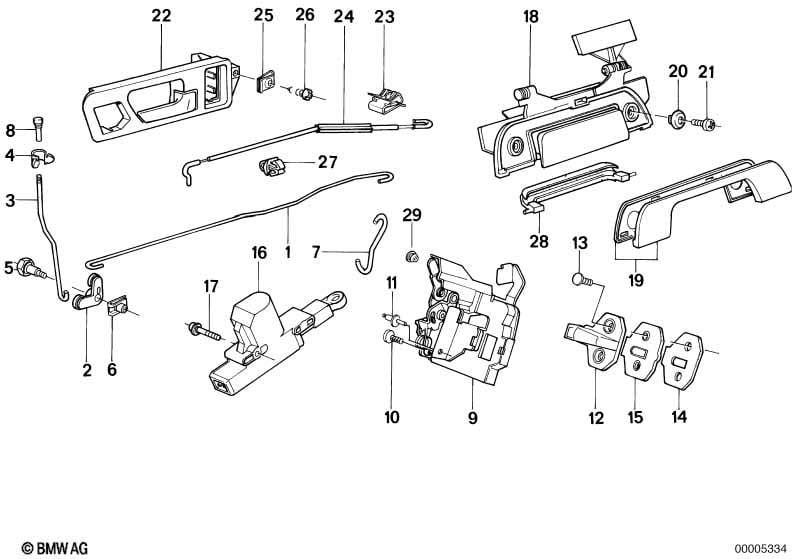

This Rear door control/door lock technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lever left | 1 | 51221908789 | $1.42 | ENDED | Shop at ECS Tuning | ||||
| 01 | Lever right | 1 | 51221908790 | $1.42 | ENDED | Shop at ECS Tuning | ||||
| 02 | Lever left | 1 | 51211906343 | $3.47 | ENDED | Shop at ECS Tuning | ||||
| 02 | Lever right | 1 | 51211906344 | $3.47 | Shop at ECS Tuning | |||||
| 03 | Lever left | 1 | 51221908787 | $2.03 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lever right | 1 | 51221908788 | $1.82 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun shield |
=Yes |
|||||||||
| 03 | Left operating rod | 1 | 51221938881 | $3.23 | ENDED | Shop at ECS Tuning | ||||
| 03 | Right operating rod | 1 | 51221938882 | $3.18 | Shop at ECS Tuning | |||||
| 04 | Tubing support | D=10,8MM | 2 | 64111364073 | $0.57 | Shop at ECS Tuning | ||||
| 05 | Collar screw | 2 | 51211906548 | $0.69 | ENDED | Shop at ECS Tuning | ||||
| 05 | Collar screw | M6 | 2 | 51221818973 | $0.69 | Shop at ECS Tuning | ||||
| 06 | C-clip nut | M6-ZNS3 | 2 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 07 | Lever left | 1 | 51221908791 | $0.75 | ENDED | Shop at ECS Tuning | ||||
| 07 | Lever right | 1 | 51221908792 | $0.75 | ENDED | Shop at ECS Tuning | ||||
| 08 | Lock button | SCHWARZ | 2 | 51211852140 | $1.82 | Shop at ECS Tuning | ||||
| 09 | Door lock rear left | 1 | 09/1988 | 51228105783 | $182.36 | Shop at ECS Tuning | ||||
| 09 | Door lock rear left | 1 | 09/1988 | 51228105783 | $182.36 | Shop at ECS Tuning | ||||
| 09 | Door lock rear right | 1 | 09/1988 | 51228105784 | $182.36 | Shop at ECS Tuning | ||||
| 09 | Door lock rear right | 1 | 09/1988 | 51228105784 | $182.36 | Shop at ECS Tuning | ||||
| 10 | Torx-countersunk head screw | ISA M6X12 | 6 | 51211950266 | $0.47 | Shop at ECS Tuning | ||||
| 11 | Rivet | 4-2A | 4 | 07129948752 | $0.19 | Shop at ECS Tuning | ||||
| 12 | Latch Striker | 2 | 09/1988 | 51218101126 | $46.28 | ENDED | Shop at ECS Tuning | |||
| 12 | Latch Striker | 2 | 09/1988 | 51218101126 | $46.28 | ENDED | Shop at ECS Tuning | |||
| 13 | Torx-countersunk head screw | M8X18 | 4 | 51211928850 | $0.52 | Shop at ECS Tuning | ||||
| 14 | Striker plate gasket | 2 | 09/1988 | 51218101136 | $2.50 | Shop at ECS Tuning | ||||
| 14 | Striker plate gasket | 2 | 09/1988 | 51218101136 | $2.50 | Shop at ECS Tuning | ||||
| 16 | Actuator f rear door | 2 | 51268356066 | $129.00 | Shop at ECS Tuning | |||||
| 17 | Hex bolt with washer | L=16MM | 4 | 51261375979 | $0.41 | Shop at ECS Tuning | ||||
| 18 | Door handle outer left | 1 | 51221928207 | $60.74 | Shop at ECS Tuning | |||||
| 18 | Door handle outer right | 1 | 51221928208 | $60.74 | Shop at ECS Tuning | |||||
| 19 | Covering rear | 2 | 51221938280 | $19.82 | Shop at ECS Tuning | |||||
| 20 | Gasket | 4 | 51211908758 | $0.21 | Shop at ECS Tuning | |||||
| 21 | Torx bolt | M5X12 | 4 | 51218105499 | $1.34 | Shop at ECS Tuning | ||||
| 22 | Door handle, inside left | 1 | 04/1992 | 51228116233 | $40.34 | ENDED | Shop at ECS Tuning | |||
| 22 | Door handle, inside left | 1 | 04/1992 | 51228116233 | $40.34 | ENDED | Shop at ECS Tuning | |||
| 22 | Door handle inner right | 1 | 04/1992 | 51228116234 | $40.34 | Shop at ECS Tuning | ||||
| 22 | Door handle inner right | 1 | 04/1992 | 51228116234 | $40.34 | Shop at ECS Tuning | ||||
| 23 | Clamp | 2 | 51211928264 | $0.69 | Shop at ECS Tuning | |||||
| 24 | Bowden cable left | 1 | 51221951119 | $7.28 | Shop at ECS Tuning | |||||
| 24 | Bowden cable right | 1 | 51221951120 | $7.28 | Shop at ECS Tuning | |||||
| 25 | Plug-in nut | M5 | 2 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 26 | Hex head screw | ST4,8X30-C-Z2 | 2 | 07119900409 | $0.47 | Shop at ECS Tuning | ||||
| 27 | Clamp | 2 | 51228202809 | $0.50 | Shop at ECS Tuning | |||||
| 28 | Base | 2 | 51211928133 | $4.14 | Shop at ECS Tuning | |||||
| 29 | Grommet | 4 | 52208238999 | $0.40 | Shop at ECS Tuning | |||||
