Door handle front/lock/key for BMW 7 Series E32 730i (1994)

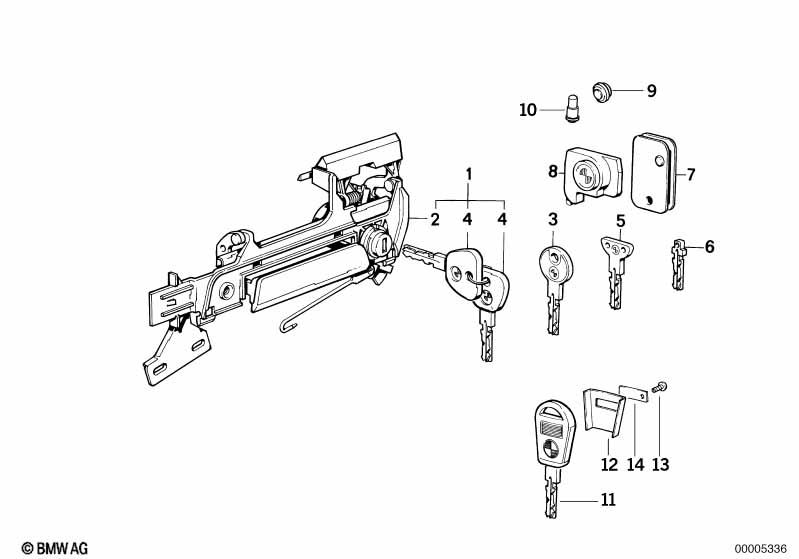

This Door handle front/lock/key technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| FOR VEHICLES WITH AND WITHOUT DOOR LOCK HEATING Important notice! Before ordering keys, central locking systems, control units (EWS immobilizer/CAS), etc., it is vital to ensure that the customer and/or vehicle owner present proof of authorization in the form of original vehicle documents and an official photo ID! A power of attorney from the vehicle owner is also required for authorised third parties. Copies of the specified credentials (proof of authorisation) must be kept in the vehicle records. Please inform BMW Service immediately if a vehicle key is lost so it can be deactivated in order to avoid taking the risk of losing the insurance cover due to gross negligence in the event of a theft. |
||||||||||
| 01 | Catch with key left | 1 | 51218147877 | $253.25 | ENDED | Shop at ECS Tuning | ||||
| 01 | Catch with key right | 1 | 51218147878 | $253.25 | ENDED | Shop at ECS Tuning | ||||
| 02 | Catch with key code right | 1 | 51211928768 | $268.67 | ENDED | Shop at ECS Tuning | ||||
| 02 | Lock with code, left | 1 | 11/1989 | 51218116383 | $268.67 | ENDED | Shop at ECS Tuning | |||
| 03 | Service key (code) | X | 09/1991 | 51218132688 | $29.90 | Shop at ECS Tuning | ||||
| 03 | Service key (blank) | X | 09/1991 | 51218132689 | $19.93 | Shop at ECS Tuning | ||||
| 04 | General key (code) | X | 51211950662 | $37.40 | Shop at ECS Tuning | |||||
| 04 | Universal key | X | 51211950666 | $24.93 | Shop at ECS Tuning | |||||
| 04 | General key w/out light compartm.(code) | X | 51211954400 | $37.40 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Universal key | (ROHLING) | X | 51218154998 | $24.93 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Light storage compartment | X | 51218105039 | $22.38 | Shop at ECS Tuning | |||||
| 05 | Spare key (code) | X | 51211950663 | $29.90 | Shop at ECS Tuning | |||||
| 05 | Spare key (blank) | X | 51211950667 | $19.93 | Shop at ECS Tuning | |||||
| 07 | Key case | X | 51218213607 | $9.15 | Shop at ECS Tuning | |||||
| For vehicles with Remote control |
=Yes |
|||||||||
| 07 | Key case | X | 09/1992 | 51217006821 | $17.32 | Shop at ECS Tuning | ||||
| 08 | Light storage compartment | X | 51218105039 | $22.38 | Shop at ECS Tuning | |||||
| The battery is to be installed directly in the corresponding control unit/key on site. It is not permitted to sell the battery if it is not installed. Old batteries must be properly disposed of. |
||||||||||
| 09 | Battery | 1,5 V - PX625A | 1 | 32321151013 | $8.03 | Shop at ECS Tuning | ||||
| For vehicles with Remote control The battery is to be installed directly in the corresponding control unit/key on site. It is not permitted to sell the battery if it is not installed. Old batteries must be properly disposed of. |
=Yes |
|||||||||
| 09 | Battery | 3,0 V - CR2016 | 1 | 09/1992 | 51218354417 | $8.23 | Shop at ECS Tuning | |||
| 10 | Bulb | 0.13W | 1 | 51211935001 | $3.00 | Shop at ECS Tuning | ||||
| For vehicles with Remote control |
=Yes |
|||||||||
| 11 | Master key with remote control (blank) | X | 09/1992 | 51218128238 | $122.45 | ENDED | Shop at ECS Tuning | |||
| 11 | Master key with remote control (code) | X | 09/1992 | 51218354410 | $155.10 | ENDED | Shop at ECS Tuning | |||
| 12 | Cover | 1 | 09/1992 | 51218354414 | $9.93 | Shop at ECS Tuning | ||||
| 13 | Countersunk head screw | 2,2X7 | 2 | 09/1992 | 66218354639 | $0.50 | Shop at ECS Tuning | |||
| 14 | Infrared remote control cover | 1 | 09/1992 | 51218354415 | $1.58 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
