Front door-hinge/door brake for BMW 5 Series E34 525tds (1995)

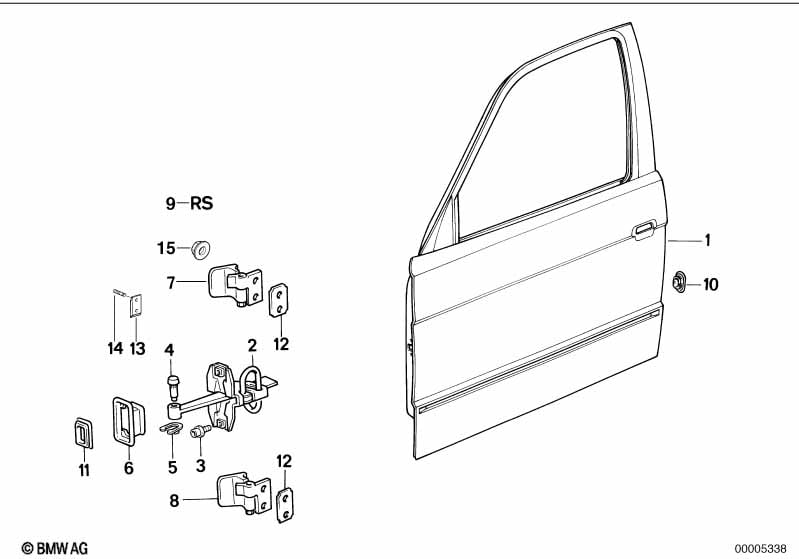

This Front door-hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door front left | 1 | 09/1991 | 41518138003 | $712.68 | ENDED | Shop at ECS Tuning | |||
| 01 | Door front right | 1 | 09/1991 | 41518138004 | $712.68 | Shop at ECS Tuning | ||||
| 02 | Front door brake | 2 | 51218155698 | $37.70 | Shop at ECS Tuning | |||||
| 03 | Torx bolt | ISA M6X12 | 4 | 51211973382 | $0.66 | Shop at ECS Tuning | ||||
| 04 | Pin | 2 | 51218141116 | $1.10 | Shop at ECS Tuning | |||||
| 06 | Door brake gasket | 2 | 51211938275 | $12.11 | Shop at ECS Tuning | |||||
| 07 | Left upper front door hinge | 1 | 41511951131 | $35.79 | Shop at ECS Tuning | |||||
| 07 | Right upper front door hinge | 1 | 41511951132 | $35.79 | Shop at ECS Tuning | |||||
| 08 | Left lower front door hinge | 1 | 41511951133 | $35.79 | Shop at ECS Tuning | |||||
| 08 | Right lower front door hinge | 1 | 41511951134 | $35.79 | Shop at ECS Tuning | |||||
| 09 | Repair kit, hinge | X | 41511922737 | $9.60 | Shop at ECS Tuning | |||||
| CONSISTING OF PIN BUSH FLAT WASHER CIRCLIP HEX BOLT WITH WASHER |
||||||||||
| 10 | Blind plug | 14X25.5MM | 2 | 51711863869 | $0.94 | Shop at ECS Tuning | ||||
| 11 | Cover | 2 | 04/1988 | 51711978885 | $0.41 | Shop at ECS Tuning | ||||
| 12 | Shim | 1,0MM | X | 41517202047 | $3.02 | Shop at ECS Tuning | ||||
| 12 | Shim | 0,5MM | X | 41518173321 | $3.02 | Shop at ECS Tuning | ||||
| 13 | Lock plate | M8 | 4 | 41511925445 | $47.65 | Shop at ECS Tuning | ||||
| 14 | Stud bolt | M8X25 | 8 | 41511925444 | $8.16 | Shop at ECS Tuning | ||||
| 15 | Hex nut | M8-8-ZNS3 | 8 | 07/1996 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 15 | Hex nut | M8-8-ZNNIV SI | 8 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
