Front door control/door lock for BMW 5 Series E34 525tds (1996)

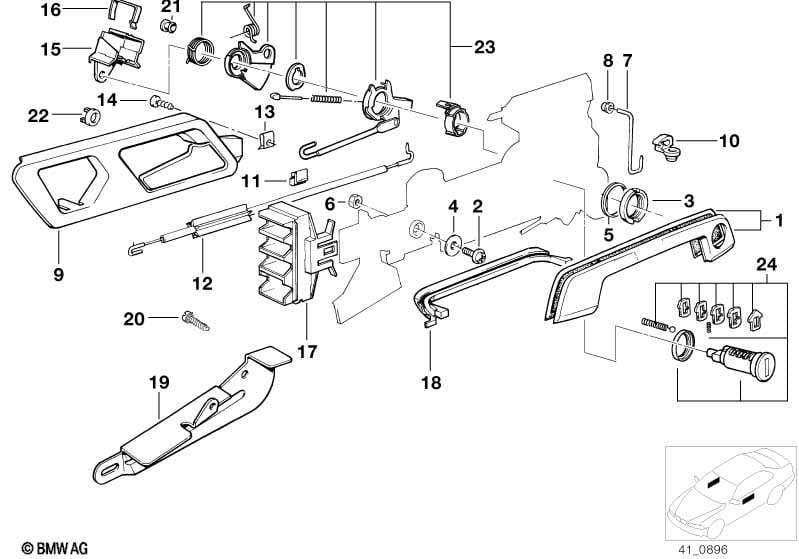

This Front door control/door lock technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering front left | 1 | 09/1991 | 51218122441 | $14.10 | Shop at ECS Tuning | ||||
| 01 | Covering front right | 1 | 09/1991 | 51218122442 | $14.10 | Shop at ECS Tuning | ||||
| 02 | Square headed bolt | M6X20 | 2 | 09/1991 | 51211970029 | $0.79 | Shop at ECS Tuning | |||
| 03 | Nut | M24X1 | 2 | 51211928307 | $3.73 | Shop at ECS Tuning | ||||
| 05 | Gasket | 2 | 51211928380 | $0.21 | Shop at ECS Tuning | |||||
| 06 | Hex nut with plate | M6 ZNT | 2 | 09/1991 | 07149156628 | $0.25 | Shop at ECS Tuning | |||
| 07 | Lever | 2 | 09/1991 | 51218148625 | $8.42 | Shop at ECS Tuning | ||||
| 08 | Grommet | 2 | 51211937233 | $0.65 | Shop at ECS Tuning | |||||
| 09 | Door handle, inside left | 1 | 51211944369 | $25.02 | Shop at ECS Tuning | |||||
| 09 | Door handle inner right | 1 | 51211944370 | $25.02 | Shop at ECS Tuning | |||||
| 10 | Circlip | 2 | 09/1991 | 51218119278 | $0.50 | Shop at ECS Tuning | ||||
| 11 | Clamp | 2 | 51211928264 | $0.69 | Shop at ECS Tuning | |||||
| 12 | Bowden cable left | 2 | 09/1991 | 51218148619 | $4.97 | Shop at ECS Tuning | ||||
| 12 | Bowden cable right | 2 | 09/1991 | 51218148620 | $4.97 | Shop at ECS Tuning | ||||
| 13 | Plug-in nut | M5 | 2 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 14 | Fillister head self-tapping screw | ST4,8X13-Z1 | 2 | 07119907956 | $0.18 | Shop at ECS Tuning | ||||
| 17 | Plug-in connection bracket | X | 09/1991 | 61131383592 | $1.37 | Shop at ECS Tuning | ||||
| 20 | Self tapping screw | AM5X10 | 2 | 07119918403 | $0.40 | ENDED | Shop at ECS Tuning | |||
| 22 | Cap | SCHWARZ | 2 | 51211944385 | $0.68 | Shop at ECS Tuning | ||||
| 23 | Repair kit lock cylinder left | 1 | 09/1995 | 51218169237 | $38.20 | Shop at ECS Tuning | ||||
| 23 | Repair kit lock cylinder right | 1 | 09/1995 | 51218169238 | $38.20 | Shop at ECS Tuning | ||||
| 24 | Repair kit lock cylinder left | 1 | 09/1995 | 51218203099 | $38.20 | Shop at ECS Tuning | ||||
| Important notice! Before ordering keys, central locking systems, control units (EWS immobilizer/CAS), etc., it is vital to ensure that the customer and/or vehicle owner present proof of authorization in the form of original vehicle documents and an official photo ID! A power of attorney from the vehicle owner is also required for authorised third parties. Copies of the specified credentials (proof of authorisation) must be kept in the vehicle records. Please inform BMW Service immediately if a vehicle key is lost so it can be deactivated in order to avoid taking the risk of losing the insurance cover due to gross negligence in the event of a theft. |
||||||||||
| 24 | Repair kit lock cylinder right | 1 | 09/1995 | 51218203100 | $38.20 | Shop at ECS Tuning | ||||
| Important notice! Before ordering keys, central locking systems, control units (EWS immobilizer/CAS), etc., it is vital to ensure that the customer and/or vehicle owner present proof of authorization in the form of original vehicle documents and an official photo ID! A power of attorney from the vehicle owner is also required for authorised third parties. Copies of the specified credentials (proof of authorisation) must be kept in the vehicle records. Please inform BMW Service immediately if a vehicle key is lost so it can be deactivated in order to avoid taking the risk of losing the insurance cover due to gross negligence in the event of a theft. |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525tds Front door control/door lock?
- This technical diagram illustrates the Front door control/door lock within the Bodywork group for the 5 Series E34 525tds produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Covering front left (Part #51218122441).
- Which models use the hardware listed in this Front door control/door lock?
- The hardware and components featured in the Front door control/door lock are specific to the 5 Series E34 525tds produced during 1996. These technical specifications ensure that parts like the Covering front left (51218122441) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front door control/door lock assembly?
- Each item in the Front door control/door lock corresponds to the numbered list below the illustration. For the 5 Series E34 525tds, you can identify the Covering front left by locating its position on the schematic, which then links to the official BMW part number 51218122441 for the Bodywork section.
