Door weatherstrip front for BMW 5 Series E34 525td (1995)

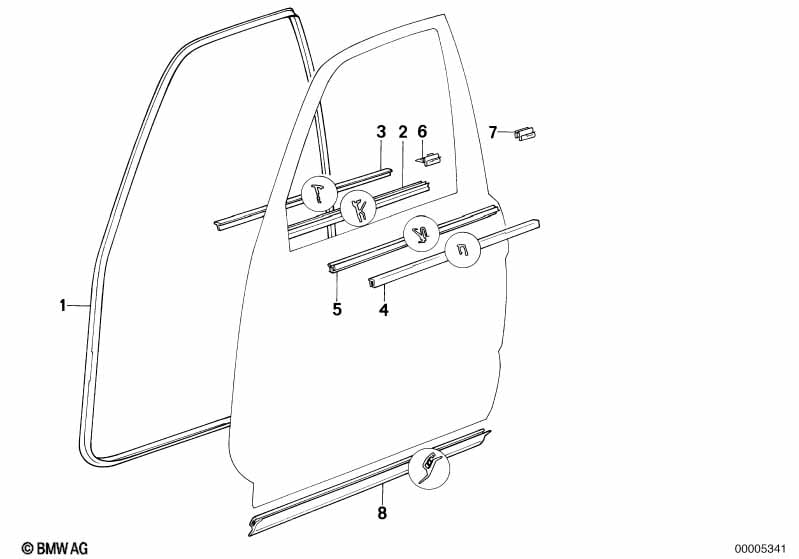

This Door weatherstrip front technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door sealing front left | 1 | 51219061483 | $98.39 | Shop at ECS Tuning | |||||
| 01 | Door sealing front right | 1 | 51219061484 | $98.39 | Shop at ECS Tuning | |||||
| 02 | Door weather strip inner left | 1 | 02/1988 | 51218102823 | $17.00 | Shop at ECS Tuning | ||||
| 02 | Door weather strip inner right | 1 | 02/1988 | 51218102824 | $17.00 | Shop at ECS Tuning | ||||
| 03 | Moulding, front left | CHROM | 1 | 51211944715 | $46.90 | ENDED | Shop at ECS Tuning | |||
| 03 | Moulding, front right | CHROM | 1 | 51211944716 | $46.90 | ENDED | Shop at ECS Tuning | |||
| 03 | Moulding, front left | SCHWARZ | 1 | 51212232443 | $46.90 | ENDED | Shop at ECS Tuning | |||
| 03 | Moulding, front right | SCHWARZ | 1 | 51212232444 | $46.90 | Shop at ECS Tuning | ||||
| 04 | Covering left | CHROM | 1 | 51211944231 | $57.65 | Shop at ECS Tuning | ||||
| 04 | Covering right | CHROM | 1 | 51211944232 | $57.65 | Shop at ECS Tuning | ||||
| 04 | Covering left | SCHWARZ | 1 | 51212232447 | $60.13 | ENDED | Shop at ECS Tuning | |||
| 04 | Covering right | SCHWARZ | 1 | 51212232448 | $60.13 | ENDED | Shop at ECS Tuning | |||
| 05 | Door weather strip outer left | 1 | 51211944345 | $25.91 | Shop at ECS Tuning | |||||
| 05 | Door weather strip outer right | 1 | 51211944346 | $25.91 | Shop at ECS Tuning | |||||
| 06 | Clamp | X | 51211928189 | $1.45 | Shop at ECS Tuning | |||||
| 07 | Clamp | X | 51211908406 | $2.00 | Shop at ECS Tuning | |||||
| 08 | Covering left | 1 | 51211944419 | $23.88 | Shop at ECS Tuning | |||||
| 08 | Covering right | 1 | 51211944420 | $23.88 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO M TECHNIC | ||||||||||
| 08 | Covering left | M TECHNIC | 1 | 51212230373 | $87.83 | Shop at ECS Tuning | ||||
| 08 | Covering right | M TECHNIC | 1 | 51212230374 | $87.83 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
