Door weatherstrip rear for BMW 5 Series E34 520i (1990)

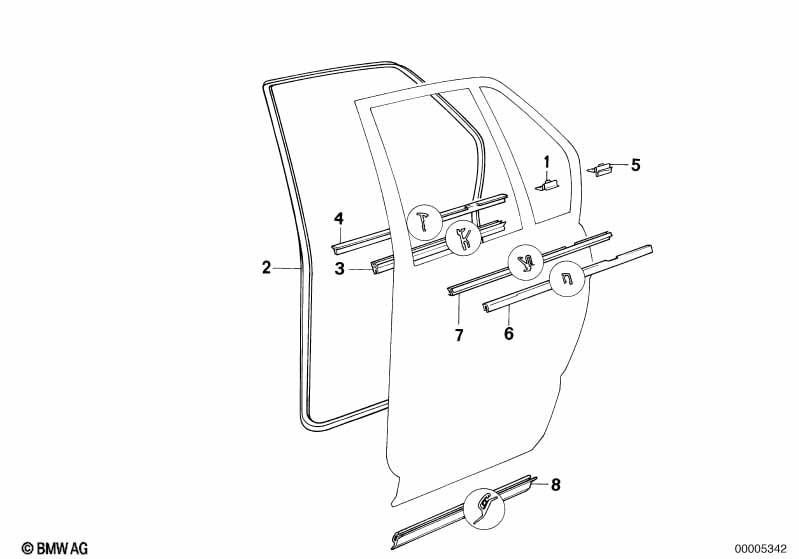

This Door weatherstrip rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clamp | 4 | 51221938297 | $1.10 | Shop at ECS Tuning | |||||
| 02 | Door weatherstrip rear left | 1 | 51229061485 | $98.39 | Shop at ECS Tuning | |||||
| 02 | Door weatherstrip rear right | 1 | 51229061486 | $98.39 | Shop at ECS Tuning | |||||
| 03 | Door weather strip inner left | 1 | 02/1988 | 51228102825 | $14.96 | Shop at ECS Tuning | ||||
| 03 | Door weather strip inner right | 1 | 02/1988 | 51228102826 | $14.96 | Shop at ECS Tuning | ||||
| 04 | Waist rail trim strip, left rear | CHROM | 1 | 51221944717 | $39.18 | ENDED | Shop at ECS Tuning | |||
| 04 | Waist rail trim strip, right rear | CHROM | 1 | 51221944718 | $39.18 | ENDED | Shop at ECS Tuning | |||
| 04 | Waist rail trim strip, left rear | SCHWARZ | 1 | 51222232445 | $34.17 | Shop at ECS Tuning | ||||
| 04 | Waist rail trim strip, right rear | SCHWARZ | 1 | 51222232446 | $34.17 | Shop at ECS Tuning | ||||
| 05 | Clamp | X | 51211928189 | $1.45 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun shield |
=Yes |
|||||||||
| 05 | Clamp | 1 | 51218107857 | $1.29 | Shop at ECS Tuning | |||||
| 06 | Covering left | CHROM | 1 | 51221944233 | $62.40 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering right | CHROM | 1 | 51221944234 | $62.40 | Shop at ECS Tuning | ||||
| 06 | Covering left | SCHWARZ | 1 | 51222232449 | $70.27 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering right | SCHWARZ | 1 | 51222232450 | $70.27 | ENDED | Shop at ECS Tuning | |||
| 07 | Door weather strip outer left | 1 | 51221944347 | $32.05 | Shop at ECS Tuning | |||||
| 07 | Door weather strip outer right | 1 | 51221944348 | $32.05 | Shop at ECS Tuning | |||||
| 08 | Covering, rear | 2 | 51221944421 | $17.82 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO M TECHNIC | ||||||||||
| 08 | Covering, rear | M TECHNIC | 2 | 51222230398 | $90.32 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 520i Door weatherstrip rear?
- This technical diagram illustrates the Door weatherstrip rear within the Bodywork group for the 5 Series E34 520i produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Clamp (Part #51221938297).
- Which models use the hardware listed in this Door weatherstrip rear?
- The hardware and components featured in the Door weatherstrip rear are specific to the 5 Series E34 520i produced during 1990. These technical specifications ensure that parts like the Clamp (51221938297) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door weatherstrip rear assembly?
- Each item in the Door weatherstrip rear corresponds to the numbered list below the illustration. For the 5 Series E34 520i, you can identify the Clamp by locating its position on the schematic, which then links to the official BMW part number 51221938297 for the Bodywork section.
