Closing system, door, rear for BMW 5 Series E34 520i (1993)

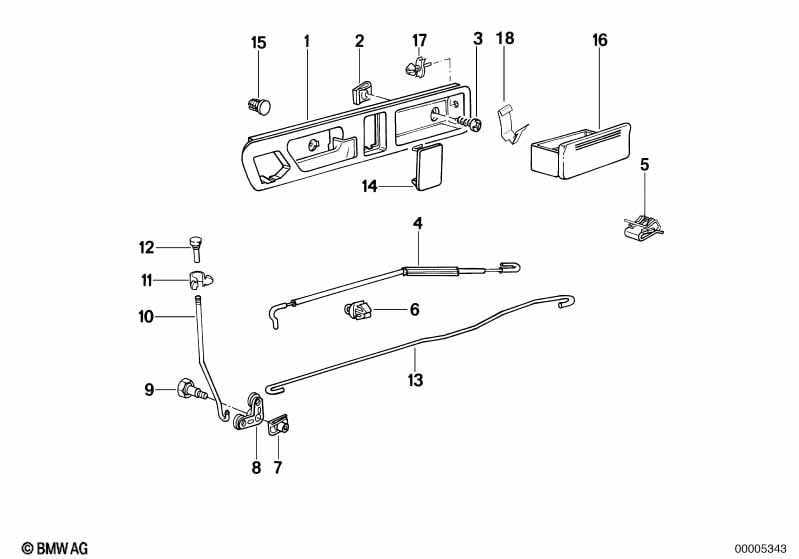

This Closing system, door, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door handle, inside left | 1 | 51228137387 | $30.48 | Shop at ECS Tuning | |||||
| 01 | Door handle inner right | 1 | 51228137388 | $30.48 | Shop at ECS Tuning | |||||
| 02 | Plug-in nut | M5 | 4 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 03 | Fillister head self-tapping screw | ST4,8X13-Z1 | 4 | 07119907956 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Bowden cable left | 1 | 01/1992 | 51228148621 | $4.97 | Shop at ECS Tuning | ||||
| 04 | Bowden cable right | 1 | 01/1992 | 51228148622 | $4.97 | Shop at ECS Tuning | ||||
| 05 | Clamp | 2 | 51211928264 | $0.69 | Shop at ECS Tuning | |||||
| 06 | Clamp | 2 | 51228202809 | $0.50 | Shop at ECS Tuning | |||||
| 07 | C-clip nut | M6-ZNS3 | 2 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 08 | Lever | 2 | 01/1992 | 51228132380 | $1.73 | Shop at ECS Tuning | ||||
| 09 | Collar screw | M6 | 2 | 51221818973 | $0.69 | Shop at ECS Tuning | ||||
| 10 | Lever left | 1 | 51221944195 | $1.77 | Shop at ECS Tuning | |||||
| 10 | Lever right | 1 | 51221944196 | $1.77 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun shield |
=Yes |
|||||||||
| 10 | Lever left | 1 | 51228102965 | $3.50 | ENDED | Shop at ECS Tuning | ||||
| 10 | Lever right | 1 | 51228102966 | $3.50 | Shop at ECS Tuning | |||||
| 11 | Tubing support | D=10,8MM | 2 | 64111364073 | $0.57 | Shop at ECS Tuning | ||||
| 12 | Lock button | SCHWARZ | 2 | 51211852140 | $1.82 | Shop at ECS Tuning | ||||
| 13 | Lever | 2 | 01/1992 | 51228148823 | $1.82 | Shop at ECS Tuning | ||||
| 14 | Cover | 2 | 51221944524 | $0.88 | Shop at ECS Tuning | |||||
| 15 | Cap | SCHWARZ | 2 | 51211944385 | $0.68 | Shop at ECS Tuning | ||||
| 16 | Ashtray | 2 | 01/1991 | 51168137396 | $37.92 | Shop at ECS Tuning | ||||
| 18 | Spring | 2 | 51161944215 | $1.98 | ENDED | Shop at ECS Tuning | ||||
