Trunk lid, hinge, latch for BMW 3 Series E21 320 (1979)

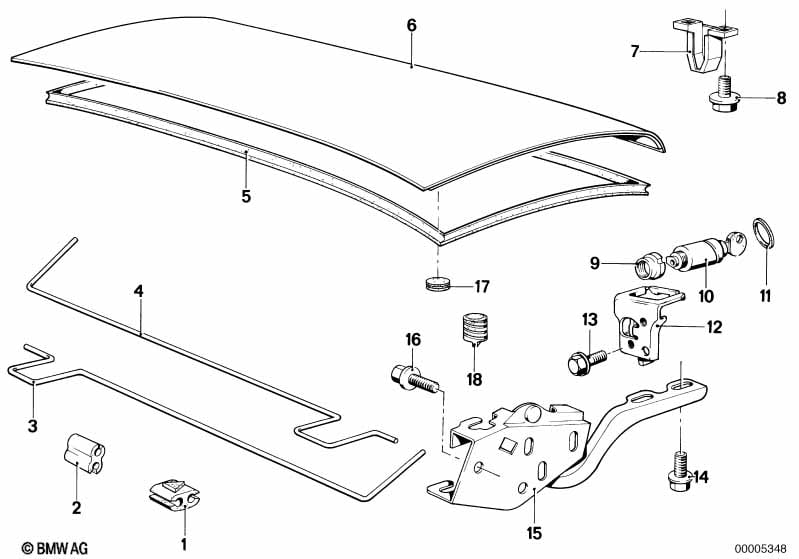

This Trunk lid, hinge, latch technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Suspension | 2 | 51241815364 | $0.90 | Shop at ECS Tuning | |||||
| 02 | Suspension | 1 | 51241804080 | $1.92 | Shop at ECS Tuning | |||||
| 03 | Torsion spring right | 1 | 41621826580 | $28.61 | ENDED | Shop at ECS Tuning | ||||
| 04 | Torsion spring left | 1 | 41621826579 | $13.39 | Shop at ECS Tuning | |||||
| 05 | Trunk lid sealing | 1 | 51711826976 | $125.71 | Shop at ECS Tuning | |||||
| 06 | Trunk lid | 1 | 41621851566 | $357.12 | Shop at ECS Tuning | |||||
| 07 | Catch upper part | 1 | 04/1978 | 51241866476 | $8.95 | ENDED | Shop at ECS Tuning | |||
| 08 | Hex bolt with washer | M6X18-U1 | 2 | 07119905399 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Threaded ring | 1 | 51241821322 | $3.78 | Shop at ECS Tuning | |||||
| 10 | Trunk lid lock with key | 1 | 51241846159 | $80.75 | Shop at ECS Tuning | |||||
| 10 | Trunk lid lock with code | 1 | 51241846160 | $100.72 | ENDED | Shop at ECS Tuning | ||||
| 11 | Base | 1 | 51241821069 | $0.93 | ENDED | Shop at ECS Tuning | ||||
| 11 | Base | 1 | 51241868800 | $0.67 | ENDED | Shop at ECS Tuning | ||||
| 12 | Catch lower part | 1 | 04/1978 | 51241867719 | $58.35 | Shop at ECS Tuning | ||||
| 13 | Hex bolt with washer | M6X12-Z4-2 | 2 | 07119915015 | $0.47 | Shop at ECS Tuning | ||||
| 14 | Hex bolt with washer | M6X12-Z4-2 | 4 | 07119915015 | $0.47 | Shop at ECS Tuning | ||||
| 14 | Hex bolt with washer | M6X16-Z4-2 | 4 | 07119915024 | $1.89 | Shop at ECS Tuning | ||||
| 15 | Hinge left | 1 | 41621846697 | $38.75 | Shop at ECS Tuning | |||||
| 15 | Hinge right | 1 | 41621846698 | $41.24 | Shop at ECS Tuning | |||||
| 16 | Hex bolt with washer | M8X20-Z3 | 6 | 07119913958 | $0.43 | Shop at ECS Tuning | ||||
| 17 | Pushrod seal | D=8MM | 2 | 41125503104 | $0.45 | ENDED | Shop at ECS Tuning | |||
| 18 | Stop buffer | 2 | 51231852347 | $2.79 | Shop at ECS Tuning |
