Single components for trunk lid for BMW 5 Series E12 520 (1981)

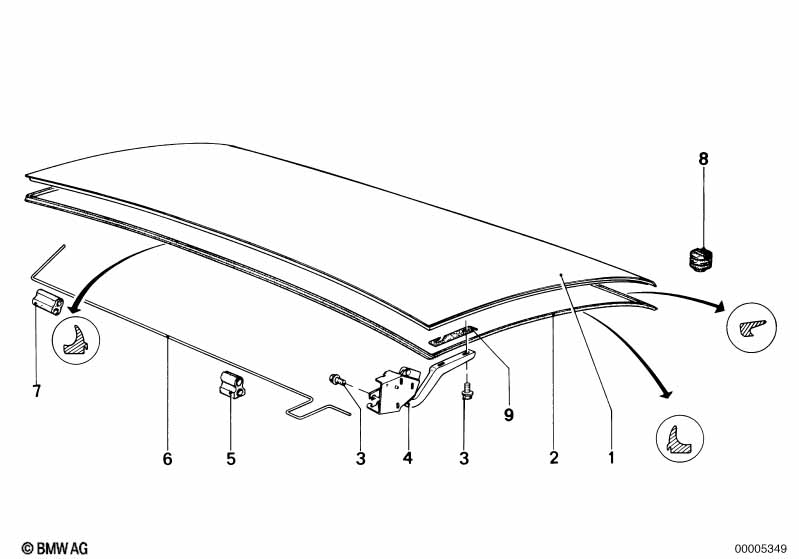

This Single components for trunk lid technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid | 1 | 41621828939 | $540.33 | Shop at ECS Tuning | |||||
| 02 | sealing | 1 | 51241817087 | $89.42 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M8X20-Z3 | X | 07119913958 | $0.43 | Shop at ECS Tuning | ||||
| 04 | Hinge left | 1 | 41621870627 | $33.74 | Shop at ECS Tuning | |||||
| 04 | Hinge right | 1 | 41621870628 | $33.74 | Shop at ECS Tuning | |||||
| 05 | Suspension | 1 | 41625676221 | $2.59 | ENDED | Shop at ECS Tuning | ||||
| 06 | Torsion spring left | 1 | 41621809647 | $14.28 | Shop at ECS Tuning | |||||
| 06 | Torsion spring right | 1 | 41621809648 | $14.28 | Shop at ECS Tuning | |||||
| 07 | Suspension | 2 | 51241804080 | $1.92 | Shop at ECS Tuning | |||||
| 08 | Stop buffer | 2 | 51231852347 | $2.79 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520 Single components for trunk lid?
- This technical diagram illustrates the Single components for trunk lid within the Bodywork group for the 5 Series E12 520 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Trunk lid (Part #41621828939).
- Which models use the hardware listed in this Single components for trunk lid?
- The hardware and components featured in the Single components for trunk lid are specific to the 5 Series E12 520 produced during 1981. These technical specifications ensure that parts like the Trunk lid (41621828939) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single components for trunk lid assembly?
- Each item in the Single components for trunk lid corresponds to the numbered list below the illustration. For the 5 Series E12 520, you can identify the Trunk lid by locating its position on the schematic, which then links to the official BMW part number 41621828939 for the Bodywork section.
