Trunk lid/closing system for BMW 5 Series E12 528i (1981)

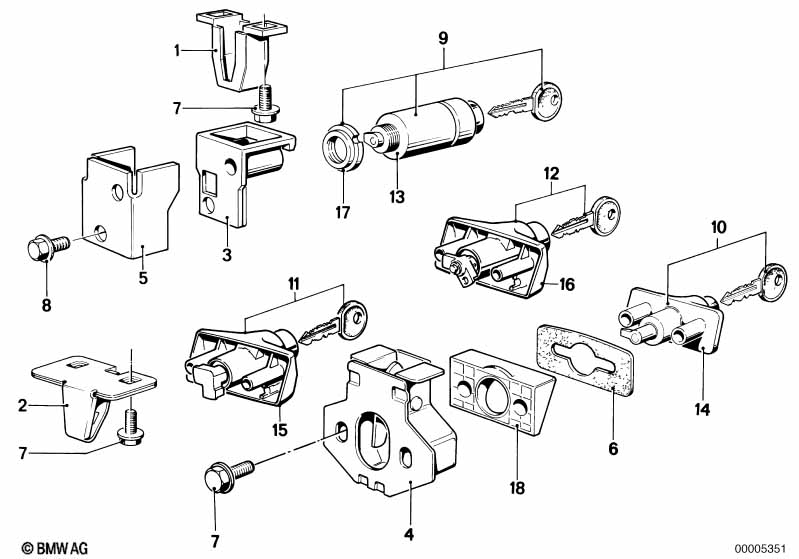

This Trunk lid/closing system technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Catch upper part | 1 | 08/1977 | 51241862340 | $10.94 | Shop at ECS Tuning | ||||
| 04 | Catch lower part | 1 | 08/1977 | 51241860014 | $66.06 | Shop at ECS Tuning | ||||
| 06 | Gasket | 1 | 08/1977 | 51241862345 | $1.93 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X16-Z4-2 | X | 07119915024 | $1.89 | Shop at ECS Tuning | ||||
| 10 | Trunk lid lock with key | 1 | 08/1977 | 51241929928 | $77.53 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Central locking system |
=Yes |
|||||||||
| 12 | Trunk lid lock with key | 1 | 08/1980 | 51241876056 | $77.53 | Shop at ECS Tuning | ||||
| 14 | Catch with code | 1 | 08/1977 | 51241929929 | Shop at ECS Tuning | |||||
| For vehicles with Central locking system |
=Yes |
|||||||||
| 16 | Trunk lid lock with code | *CODE 5000 | 1 | 08/1980 | 51241876057 | $86.32 | Shop at ECS Tuning | |||
| 16 | Trunk lid lock with code | CODE* 10000 | 1 | 08/1980 | 51249069303 | $86.32 | Shop at ECS Tuning | |||
| 18 | Intermediate plate assy | 1 | 08/1977 | 51241862344 | $5.91 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
