Fill-in flap for BMW 3 Series E21 318i (1982)

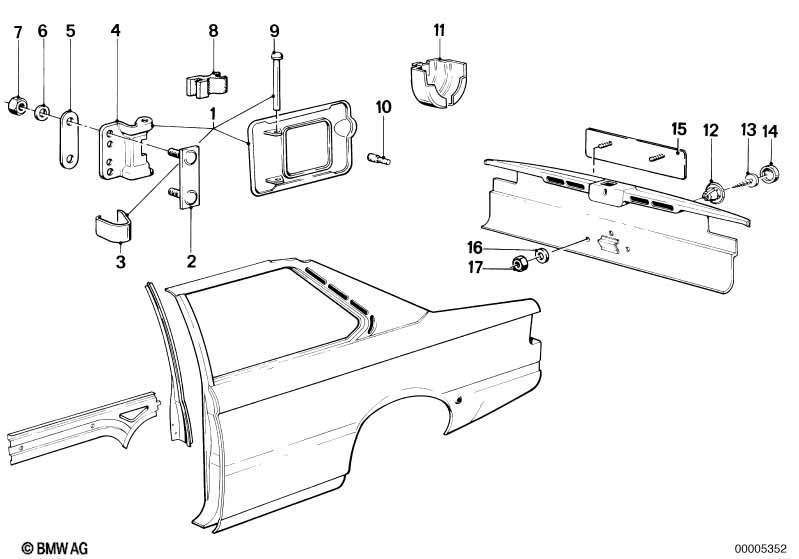

This Fill-in flap technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fill-in flap | 1 | 51171864757 | $75.95 | Shop at ECS Tuning | |||||
| 02 | Lock plate | 1 | 51211832811 | $6.31 | Shop at ECS Tuning | |||||
| 03 | Spring | 1 | 51171969235 | $1.38 | Shop at ECS Tuning | |||||
| 04 | Hinge | 1 | 51171846701 | $11.15 | ENDED | Shop at ECS Tuning | ||||
| 05 | Spacer | 0,5MM | X | 51171852594 | $0.17 | ENDED | Shop at ECS Tuning | |||
| 05 | Spacer | 1,0MM | X | 51171852595 | $0.17 | Shop at ECS Tuning | ||||
| 06 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Stopper | 1 | 51171836476 | $0.18 | ENDED | Shop at ECS Tuning | ||||
| 09 | Pin | 1 | 51171829639 | $2.30 | Shop at ECS Tuning | |||||
| 10 | Stop buffer | 1 | 51171853772 | $1.52 | Shop at ECS Tuning | |||||
| 11 | Support filler cap | 1 | 51171923919 | $5.74 | Shop at ECS Tuning | |||||
| 12 | Plug-in nut | 2 | 51181852299 | $0.23 | Shop at ECS Tuning | |||||
| 13 | Fillister head self-tapping screw | ST4,8X16MM | 2 | 07143448498 | $0.18 | Shop at ECS Tuning | ||||
| 14 | Covering cap | WEISS | X | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 14 | Covering cap | SCHWARZ | X | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 14 | Covering cap | DUNKELBLAU | X | 64111375497 | $0.20 | Shop at ECS Tuning | ||||
| For vehicles with National version italy |
L814A=Yes |
|||||||||
| 15 | Base | 1 | 51181864694 | $7.04 | ENDED | Shop at ECS Tuning | ||||
| 16 | Rubber washer | 2 | 34414045712 | $0.20 | Shop at ECS Tuning | |||||
| 17 | Cap nut | M4 | 2 | 41335480120 | $0.20 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
