Trunk lid/closing system for BMW 7 Series E23 728 (1979)

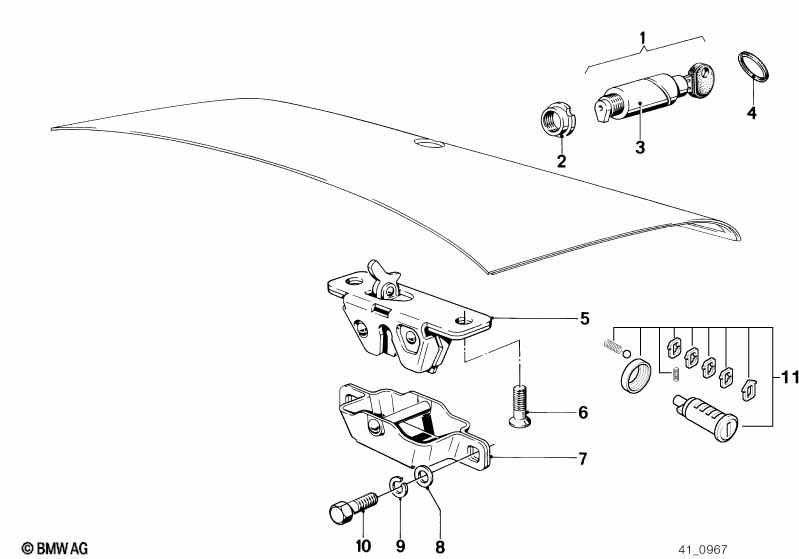

This Trunk lid/closing system technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid lock with key | 1 | 51241858639 | $56.64 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Central locking system |
=Yes |
|||||||||
| 01 | Trunk lid lock with key | 1 | 09/1980 | 51241858614 | $61.54 | Shop at ECS Tuning | ||||
| 02 | Threaded ring | 1 | 51241821322 | $3.78 | Shop at ECS Tuning | |||||
| 03 | Catch with code | 1 | 51241858640 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Central locking system |
=Yes |
|||||||||
| 03 | Trunk lid lock with code | 1 | 09/1980 | 51241858616 | ENDED | Shop at ECS Tuning | ||||
| 04 | Base | 1 | 51241814988 | $1.05 | ENDED | Shop at ECS Tuning | ||||
| 04 | Base | 1 | 51241868800 | $0.67 | ENDED | Shop at ECS Tuning | ||||
| 05 | Catch upper part | 1 | 51241850889 | $59.45 | ENDED | Shop at ECS Tuning | ||||
| 06 | Countersunk head screw | M6X16-8.8-ZNS3 | 2 | 07119904304 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Catch lower part | 1 | 51241850890 | $6.98 | ENDED | Shop at ECS Tuning | ||||
| 08 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 09 | Spring washer Black | B6-ZN | 2 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 09 | Wave washer | B6-ZNS3 | 2 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 10 | Fillister-head screw | M6X16 | 2 | 07119919623 | ENDED | Shop at ECS Tuning | ||||
| 11 | Rep.kit f lock cylinder | 1 | 51249061389 | $47.99 | ENDED | Shop at ECS Tuning | ||||
