Trunk lid/closing system for BMW 5 Series E28 528i (1988)

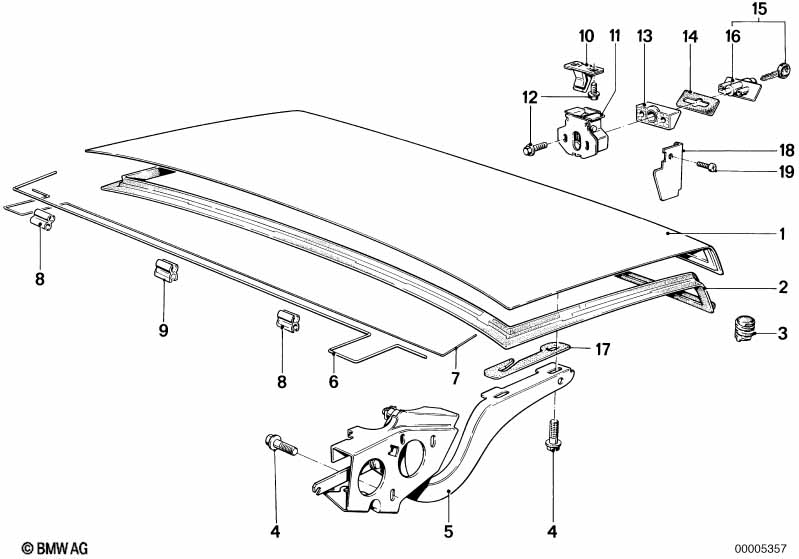

This Trunk lid/closing system technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid | 1 | 41621959569 | $526.20 | Shop at ECS Tuning | |||||
| 02 | Trunk lid gasket | 1 | 51711889473 | $80.68 | Shop at ECS Tuning | |||||
| 03 | Stop buffer | 2 | 51231852347 | $2.79 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M8X16-Z3-2 | X | 07119915071 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Hinge left | 1 | 41621870627 | $33.74 | Shop at ECS Tuning | |||||
| 05 | Hinge right | 1 | 41621870628 | $33.74 | Shop at ECS Tuning | |||||
| 06 | Torsion spring left | 1 | 41621809647 | $14.28 | Shop at ECS Tuning | |||||
| 06 | Torsion spring left | 1 | 41623900440 | Shop at ECS Tuning | ||||||
| 07 | Torsion spring right | 1 | 41621809648 | $14.28 | Shop at ECS Tuning | |||||
| 07 | Torsion spring right | 1 | 41623900441 | Shop at ECS Tuning | ||||||
| 08 | Suspension | 2 | 51241804080 | $1.92 | Shop at ECS Tuning | |||||
| 09 | Suspension | 1 | 41625676221 | $2.59 | ENDED | Shop at ECS Tuning | ||||
| 10 | Catch upper part | 1 | 51241860011 | $9.54 | ENDED | Shop at ECS Tuning | ||||
| 11 | Catch lower part | 1 | 51241860014 | $66.06 | Shop at ECS Tuning | |||||
| 12 | Hex bolt with washer | M6X16-Z4-2 | 5 | 07119915024 | $1.89 | Shop at ECS Tuning | ||||
| 13 | Intermediate plate assy | 1 | 51241862344 | $5.91 | Shop at ECS Tuning | |||||
| 14 | Gasket | 1 | 51241862345 | $1.93 | Shop at ECS Tuning | |||||
| 15 | Trunk lid lock with key | 1 | 51241929928 | $77.53 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Central locking system |
=Yes |
|||||||||
| 15 | Trunk lid lock with key | 1 | 51241876056 | $77.53 | Shop at ECS Tuning | |||||
| 16 | Catch with code | 1 | 51241929929 | Shop at ECS Tuning | ||||||
| For vehicles with Central locking system |
=Yes |
|||||||||
| 16 | Trunk lid lock with code | *CODE 5000 | 1 | 51241876057 | $86.32 | Shop at ECS Tuning | ||||
| 16 | Trunk lid lock with code | CODE* 10000 | 1 | 51249069303 | $86.32 | Shop at ECS Tuning | ||||
| 17 | Foil left | 1 | 41621906193 | ENDED | Shop at ECS Tuning | |||||
| 17 | Foil right | 1 | 41621906194 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Central locking system |
=Yes |
|||||||||
| 18 | Cover | 1 | 51241932923 | ENDED | Shop at ECS Tuning | |||||
| 19 | Fillister head screw | M5X8-Z3 | 3 | 07119906822 | $0.18 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 528i Trunk lid/closing system?
- This technical diagram illustrates the Trunk lid/closing system within the Bodywork group for the 5 Series E28 528i produced during 1988. It provides a detailed exploded view of the components, identifying key parts such as the Trunk lid (Part #41621959569).
- Which models use the hardware listed in this Trunk lid/closing system?
- The hardware and components featured in the Trunk lid/closing system are specific to the 5 Series E28 528i produced during 1988. These technical specifications ensure that parts like the Trunk lid (41621959569) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trunk lid/closing system assembly?
- Each item in the Trunk lid/closing system corresponds to the numbered list below the illustration. For the 5 Series E28 528i, you can identify the Trunk lid by locating its position on the schematic, which then links to the official BMW part number 41621959569 for the Bodywork section.
