Rear spoiler single parts for BMW 3 Series E21 320i (1978)

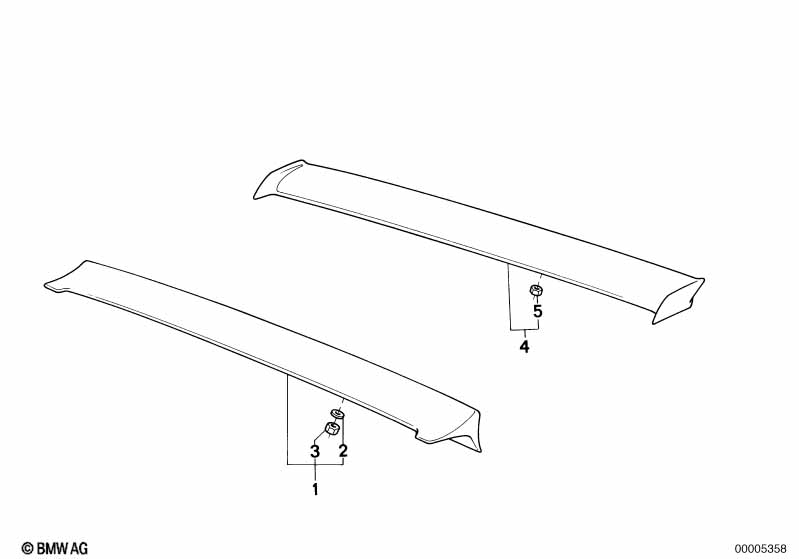

This Rear spoiler single parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Installing set rear spoiler | MOTORSPORT | 1 | 51712205435 | ENDED | Shop at ECS Tuning | ||||
| 02 | Washer | 4-200 HV-ZNS3 | 4 | 07119904207 | Shop at ECS Tuning | |||||
| 03 | Hex nut | M4-A2-70 | 4 | 07129906098 | $1.00 | Shop at ECS Tuning | ||||
| 04 | Installing set rear spoiler | M TECHNIC | 1 | 51711935469 | ENDED, ABE 9780558 | Shop at ECS Tuning | ||||
| 05 | Nut | 6 | 51135770165 | $1.97 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- ABE = Allgemeine Betriebserlaubnis (General Operating Permit)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Rear spoiler single parts?
- This technical diagram illustrates the Rear spoiler single parts within the Bodywork group for the 3 Series E21 320i produced during 1978. It provides a detailed exploded view of the components, identifying key parts such as the Installing set rear spoiler (Part #51712205435).
- Which models use the hardware listed in this Rear spoiler single parts?
- The hardware and components featured in the Rear spoiler single parts are specific to the 3 Series E21 320i produced during 1978. These technical specifications ensure that parts like the Installing set rear spoiler (51712205435) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear spoiler single parts assembly?
- Each item in the Rear spoiler single parts corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Installing set rear spoiler by locating its position on the schematic, which then links to the official BMW part number 51712205435 for the Bodywork section.
