Rear spoiler single parts for BMW 5 Series E28 520i (1987)

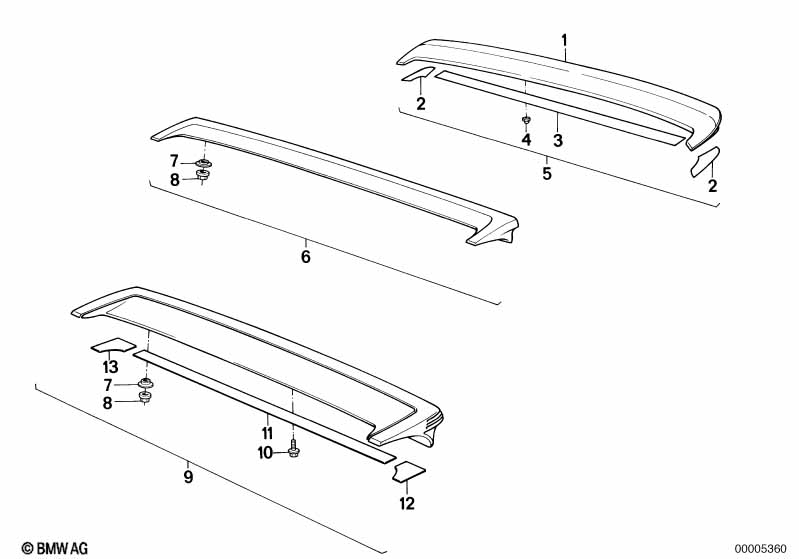

This Rear spoiler single parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear spoiler | 1 | 51711903898 | ENDED | Shop at ECS Tuning | |||||
| 02 | Foil left | 1 | 51711915557 | $3.01 | ENDED | Shop at ECS Tuning | ||||
| 02 | Foil right | 1 | 51711915558 | $3.01 | ENDED | Shop at ECS Tuning | ||||
| 03 | Adhesive tape | 5000MM | 1 | 51711873226 | $29.63 | Shop at ECS Tuning | ||||
| 04 | Cap nut | M4 | 4 | 41335480120 | $0.20 | Shop at ECS Tuning | ||||
| 05 | Installing set rear spoiler | 1 | 51719056648 | $228.78 | ENDED | Shop at ECS Tuning | ||||
| 07 | Clamp | 6 | 51711922599 | $0.42 | Shop at ECS Tuning | |||||
| 08 | Nut | 6 | 51135770165 | $1.97 | ENDED | Shop at ECS Tuning | ||||
| 09 | Installing set rear spoiler | M TECHNIC | 1 | 51711927896 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Torsion spring left | 1 | 51241919481 | $12.53 | Shop at ECS Tuning | |||||
| -- | Torsion spring right | 1 | 51241919482 | $12.53 | ENDED | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M5X10 | 4 | 07119904442 | $0.80 | Shop at ECS Tuning | ||||
| 11 | Adhesive tape | 1200MM | X | 51711922087 | $13.14 | ENDED | Shop at ECS Tuning | |||
| 12 | Foil left | 1 | 51711922083 | $3.30 | ENDED | Shop at ECS Tuning | ||||
| 13 | Foil right | 1 | 51711922084 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
